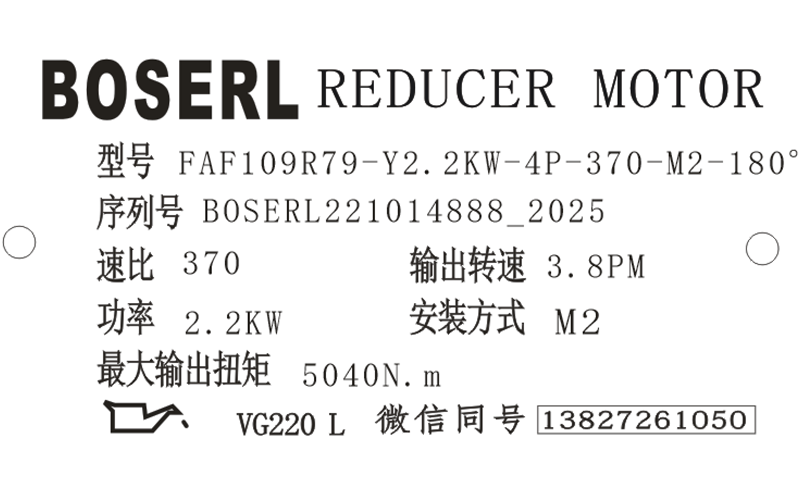

FAF109R79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF109R79減速機選型樣本。

FAF109R79-Y2.2KW-4P-370-M2-180°

FAF/R：系列代號

109/79：減速機規格代號

Y：電機

2.2KW：電機功率

4P：電機級數

370：減速機傳動比

M2：減速機安裝位置

180°：接線盒位置

FAF109R79減速機電機接線操作圖：

電氣操作必須由合格的專業人員，在低壓設備斷電停機且不會意外重新啟動的前提條件下執行。對輔助電路（比如:外部風機）也如此。否則可能會有觸電或人員受傷的危險。齒輪減速電機

超出EN 60034-1標準（VDE0530標準第1部分）規定的公差（電壓+5%、頻率+2%）,會導致設備升溫并影響設備的電磁兼容性。各型號具體的接線圖以各電機銘牌上的為準。

將3根電源線的任意2根接線交換，將可改變三相電機的旋轉方向。平行軸斜齒輪減速機

以下為各類型電機各自的電氣接線圖：

一、FAF109R79減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（無變頻器）

二、FAF109R79減速機電機0.1KW~4.0KW三相六引線電機及剎車器接線方式（有變頻器）

三、FAF109R79減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（無變頻器）

四、FAF109R79減速機電機0.1KW~4.0KW三相九引線電機及剎車器接線方式（有變頻器）

五、FAF109R79減速機電機5.5KW以上三相電機及剎車器接線方式（無變頻器）

六、FAF109R79減速機電機5.5KW以上三相電機及剎車器接線方式（有變頻）變頻電機減速機

FAF109R79減速電機型號：

YQFAF107R77-Y0.12KW，YQFAF107R77-Y0.18KW，YQFAF107R77-Y0.25KW，YQFAF107R77-Y0.37KW，YQFAF107R77-Y0.55KW，YQFAF107R77-Y0.75KW，YQFAF107R77-Y1.1KW，YQFAF107R77-Y1.5KW，YQFAF107R77-Y100M4，YQFAF107R77-Y112M4，YQFAF107R77-Y2.2KW，YQFAF107R77-Y3KW，YQFAF107R77-Y4KW，YQFAF107R77-Y63M4，YQFAF107R77-Y71M4，YQFAF107R77-Y80M4，YQFAF107R77-Y90M4，YQFAF107RF77-Y100M4，YQFAF107RF77-Y112M4，YQFAF107RF77-Y63M4，YQFAF107RF77-Y71M4，YQFAF107RF77-Y80M4，YQFAF107RF77-Y90M4，YQFAF107RF77-YB100L4，YQFAF107RF77-YB112M4，YQFAF107RF77-YB63M4，YQFAF107RF77-YB71M4，YQFAF107RF77-YB80M4，YQFAF107RF77-YB90S4，YQFAF107RF77-YDP100L4，YQFAF107RF77-YDP112M4，YQFAF107RF77-YDP63M4，YQFAF107RF77-YDP71M4，YQFAF107RF77-YDP80M4，YQFAF107RF77-YDP90S4，YQFAF107RF77-YE100L4，YQFAF107RF77-YE112M4，YQFAF107RF77-YE63M4，YQFAF107RF77-YE71M4，YQFAF107RF77-YE80M4，YQFAF107RF77-YE90S4，YQFAF107RF77-YEJ100L4，YQFAF107RF77-YEJ112M4，YQFAF107RF77-YEJ63M4，YQFAF107RF77-YEJ71M4，YQFAF107RF77-YEJ80M4，YQFAF107RF77-YEJ90S4，YQFAF107RF77-YEJB100L4，YQFAF107RF77-YEJB112M4，YQFAF107RF77-YEJB63M4，YQFAF107RF77-YEJB71M4，YQFAF107RF77-YEJB80M4，YQFAF107RF77-YEJB90S4，YQFAF107RF77-YP100L4，YQFAF107RF77-YP112M4，YQFAF107RF77-YP63M4，YQFAF107RF77-YP71M4，YQFAF107RF77-YP80M4，YQFAF107RF77-YP90S4，YQFAF107RF77-YPB100L4，YQFAF107RF77-YPB112M4，YQFAF107RF77-YPB63M4，YQFAF107RF77-YPB71M4，YQFAF107RF77-YPB80M4，YQFAF107RF77-YPB90S4，YQFAF107RF77-YPE100L4，YQFAF107RF77-YPE112M4，YQFAF107RF77-YPE63M4，YQFAF107RF77-YPE71M4，YQFAF107RF77-YPE80M4，YQFAF107RF77-YPE90S4，YQFAF107RF77-YS100L4，YQFAF107RF77-YS112M4，YQFAF107RF77-YS63M4，YQFAF107RF77-YS71M4，YQFAF107RF77-YS80M4，YQFAF107RF77-YS90S4，YQFAF107RF77-YVB100L4，YQFAF107RF77-YVB112M4，YQFAF107RF77-YVB63M4，YQFAF107RF77-YVB71M4，YQFAF107RF77-YVB80M4，YQFAF107RF77-YVB90S4，YQFAF107RF77-YVP100L4，YQFAF107RF77-YVP112M4，YQFAF107RF77-YVP63M4，YQFAF107RF77-YVP71M4，YQFAF107RF77-YVP80M4，YQFAF107RF77-YVP90S4，YQFAF107RF77-YVPEJ100L4，YQFAF107RF77-YVPEJ112M4，YQFAF107RF77-YVPEJ63M4，YQFAF107RF77-YVPEJ71M4，YQFAF107RF77-YVPEJ80M4，YQFAF107RF77-YVPEJ90S4，WFAF107R77-Y0.12KW，WFAF107R77-Y0.18KW，WFAF107R77-Y0.25KW，WFAF107R77-Y0.37KW，WFAF107R77-Y0.55KW，WFAF107R77-Y0.75KW，WFAF107R77-Y1.1KW，WFAF107R77-Y1.5KW，WFAF107R77-Y100M4，WFAF107R77-Y112M4，WFAF107R77-Y2.2KW，WFAF107R77-Y3KW，WFAF107R77-Y4KW，WFAF107R77-Y63M4，WFAF107R77-Y71M4，WFAF107R77-Y80M4，WFAF107R77-Y90M4，WFAF107RF77-Y100M4，WFAF107RF77-Y112M4，WFAF107RF77-Y63M4，WFAF107RF77-Y71M4，WFAF107RF77-Y80M4，WFAF107RF77-Y90M4，WFAF107RF77-YB100L4，WFAF107RF77-YB112M4，WFAF107RF77-YB63M4，WFAF107RF77-YB71M4，WFAF107RF77-YB80M4，WFAF107RF77-YB90S4，WFAF107RF77-YDP100L4，WFAF107RF77-YDP112M4，WFAF107RF77-YDP63M4，WFAF107RF77-YDP71M4，WFAF107RF77-YDP80M4，WFAF107RF77-YDP90S4，WFAF107RF77-YE100L4，WFAF107RF77-YE112M4，WFAF107RF77-YE63M4，WFAF107RF77-YE71M4，WFAF107RF77-YE80M4，WFAF107RF77-YE90S4，WFAF107RF77-YEJ100L4，WFAF107RF77-YEJ112M4，WFAF107RF77-YEJ63M4，WFAF107RF77-YEJ71M4，WFAF107RF77-YEJ80M4，WFAF107RF77-YEJ90S4，WFAF107RF77-YEJB100L4，WFAF107RF77-YEJB112M4，WFAF107RF77-YEJB63M4，WFAF107RF77-YEJB71M4，WFAF107RF77-YEJB80M4，WFAF107RF77-YEJB90S4，WFAF107RF77-YP100L4，WFAF107RF77-YP112M4，WFAF107RF77-YP63M4，WFAF107RF77-YP71M4，WFAF107RF77-YP80M4，WFAF107RF77-YP90S4，WFAF107RF77-YPB100L4，WFAF107RF77-YPB112M4，WFAF107RF77-YPB63M4，WFAF107RF77-YPB71M4，WFAF107RF77-YPB80M4，WFAF107RF77-YPB90S4，WFAF107RF77-YPE100L4，WFAF107RF77-YPE112M4，WFAF107RF77-YPE63M4，WFAF107RF77-YPE71M4，WFAF107RF77-YPE80M4，WFAF107RF77-YPE90S4，WFAF107RF77-YS100L4，WFAF107RF77-YS112M4，WFAF107RF77-YS63M4，WFAF107RF77-YS71M4，WFAF107RF77-YS80M4，WFAF107RF77-YS90S4，WFAF107RF77-YVB100L4，WFAF107RF77-YVB112M4，WFAF107RF77-YVB63M4，WFAF107RF77-YVB71M4，WFAF107RF77-YVB80M4，WFAF107RF77-YVB90S4，WFAF107RF77-YVP100L4，WFAF107RF77-YVP112M4，WFAF107RF77-YVP63M4，WFAF107RF77-YVP71M4，WFAF107RF77-YVP80M4，WFAF107RF77-YVP90S4，WFAF107RF77-YVPEJ100L4，WFAF107RF77-YVPEJ112M4，WFAF107RF77-YVPEJ63M4，WFAF107RF77-YVPEJ71M4，WFAF107RF77-YVPEJ80M4，WFAF107RF77-YVPEJ90S4，XDFAF107R77-Y0.12KW，XDFAF107R77-Y0.18KW，XDFAF107R77-Y0.25KW，XDFAF107R77-Y0.37KW，XDFAF107R77-Y0.55KW，XDFAF107R77-Y0.75KW，XDFAF107R77-Y1.1KW，XDFAF107R77-Y1.5KW，XDFAF107R77-Y100M4，XDFAF107R77-Y112M4，XDFAF107R77-Y2.2KW，XDFAF107R77-Y3KW，XDFAF107R77-Y4KW，XDFAF107R77-Y63M4，XDFAF107R77-Y71M4，XDFAF107R77-Y80M4，XDFAF107R77-Y90M4，XDFAF107RF77-Y100M4，XDFAF107RF77-Y112M4，XDFAF107RF77-Y63M4，XDFAF107RF77-Y71M4，XDFAF107RF77-Y80M4，XDFAF107RF77-Y90M4，XDFAF107RF77-YB100L4，XDFAF107RF77-YB112M4，XDFAF107RF77-YB63M4，XDFAF107RF77-YB71M4，XDFAF107RF77-YB80M4，XDFAF107RF77-YB90S4，XDFAF107RF77-YDP100L4，XDFAF107RF77-YDP112M4，XDFAF107RF77-YDP63M4，XDFAF107RF77-YDP71M4，XDFAF107RF77-YDP80M4，XDFAF107RF77-YDP90S4，XDFAF107RF77-YE100L4，XDFAF107RF77-YE112M4，XDFAF107RF77-YE63M4，XDFAF107RF77-YE71M4，XDFAF107RF77-YE80M4，XDFAF107RF77-YE90S4，XDFAF107RF77-YEJ100L4，XDFAF107RF77-YEJ112M4，XDFAF107RF77-YEJ63M4，XDFAF107RF77-YEJ71M4，XDFAF107RF77-YEJ80M4，XDFAF107RF77-YEJ90S4，XDFAF107RF77-YEJB100L4，XDFAF107RF77-YEJB112M4，XDFAF107RF77-YEJB63M4，XDFAF107RF77-YEJB71M4，XDFAF107RF77-YEJB80M4，XDFAF107RF77-YEJB90S4，XDFAF107RF77-YP100L4，XDFAF107RF77-YP112M4，XDFAF107RF77-YP63M4，XDFAF107RF77-YP71M4，XDFAF107RF77-YP80M4，XDFAF107RF77-YP90S4，XDFAF107RF77-YPB100L4，XDFAF107RF77-YPB112M4，XDFAF107RF77-YPB63M4，XDFAF107RF77-YPB71M4，XDFAF107RF77-YPB80M4，XDFAF107RF77-YPB90S4，XDFAF107RF77-YPE100L4，XDFAF107RF77-YPE112M4，XDFAF107RF77-YPE63M4，XDFAF107RF77-YPE71M4，XDFAF107RF77-YPE80M4，XDFAF107RF77-YPE90S4，XDFAF107RF77-YS100L4，XDFAF107RF77-YS112M4，XDFAF107RF77-YS63M4，XDFAF107RF77-YS71M4，XDFAF107RF77-YS80M4，XDFAF107RF77-YS90S4，XDFAF107RF77-YVB100L4，XDFAF107RF77-YVB112M4，XDFAF107RF77-YVB63M4，XDFAF107RF77-YVB71M4，XDFAF107RF77-YVB80M4，XDFAF107RF77-YVB90S4，XDFAF107RF77-YVP100L4，XDFAF107RF77-YVP112M4，XDFAF107RF77-YVP63M4，XDFAF107RF77-YVP71M4，XDFAF107RF77-YVP80M4，XDFAF107RF77-YVP90S4，XDFAF107RF77-YVPEJ100L4，XDFAF107RF77-YVPEJ112M4，XDFAF107RF77-YVPEJ63M4，XDFAF107RF77-YVPEJ71M4，XDFAF107RF77-YVPEJ80M4，XDFAF107RF77-YVPEJ90S4，JCFAF107R77-Y0.12KW，JCFAF107R77-Y0.18KW，JCFAF107R77-Y0.25KW，JCFAF107R77-Y0.37KW，JCFAF107R77-Y0.55KW，JCFAF107R77-Y0.75KW，JCFAF107R77-Y1.1KW，JCFAF107R77-Y1.5KW，JCFAF107R77-Y100M4，JCFAF107R77-Y112M4，JCFAF107R77-Y2.2KW，JCFAF107R77-Y3KW，JCFAF107R77-Y4KW，JCFAF107R77-Y63M4，JCFAF107R77-Y71M4，JCFAF107R77-Y80M4，JCFAF107R77-Y90M4，JCFAF107RF77-Y100M4，JCFAF107RF77-Y112M4，JCFAF107RF77-Y63M4，JCFAF107RF77-Y71M4，JCFAF107RF77-Y80M4，JCFAF107RF77-Y90M4，JCFAF107RF77-YB100L4，JCFAF107RF77-YB112M4，JCFAF107RF77-YB63M4，JCFAF107RF77-YB71M4，JCFAF107RF77-YB80M4，JCFAF107RF77-YB90S4，JCFAF107RF77-YDP100L4，JCFAF107RF77-YDP112M4，JCFAF107RF77-YDP63M4，JCFAF107RF77-YDP71M4，JCFAF107RF77-YDP80M4，JCFAF107RF77-YDP90S4，JCFAF107RF77-YE100L4，JCFAF107RF77-YE112M4，JCFAF107RF77-YE63M4，JCFAF107RF77-YE71M4，JCFAF107RF77-YE80M4，JCFAF107RF77-YE90S4，JCFAF107RF77-YEJ100L4，JCFAF107RF77-YEJ112M4，JCFAF107RF77-YEJ63M4，JCFAF107RF77-YEJ71M4，JCFAF107RF77-YEJ80M4，JCFAF107RF77-YEJ90S4，JCFAF107RF77-YEJB100L4，JCFAF107RF77-YEJB112M4，JCFAF107RF77-YEJB63M4，JCFAF107RF77-YEJB71M4，JCFAF107RF77-YEJB80M4，JCFAF107RF77-YEJB90S4，JCFAF107RF77-YP100L4，JCFAF107RF77-YP112M4，JCFAF107RF77-YP63M4，JCFAF107RF77-YP71M4，JCFAF107RF77-YP80M4，JCFAF107RF77-YP90S4，JCFAF107RF77-YPB100L4，JCFAF107RF77-YPB112M4，JCFAF107RF77-YPB63M4，JCFAF107RF77-YPB71M4，JCFAF107RF77-YPB80M4，JCFAF107RF77-YPB90S4，JCFAF107RF77-YPE100L4，JCFAF107RF77-YPE112M4，JCFAF107RF77-YPE63M4，JCFAF107RF77-YPE71M4，JCFAF107RF77-YPE80M4，JCFAF107RF77-YPE90S4，JCFAF107RF77-YS100L4，JCFAF107RF77-YS112M4，JCFAF107RF77-YS63M4，JCFAF107RF77-YS71M4，JCFAF107RF77-YS80M4，JCFAF107RF77-YS90S4，JCFAF107RF77-YVB100L4，JCFAF107RF77-YVB112M4，JCFAF107RF77-YVB63M4，JCFAF107RF77-YVB71M4，JCFAF107RF77-YVB80M4，JCFAF107RF77-YVB90S4，JCFAF107RF77-YVP100L4，JCFAF107RF77-YVP112M4，JCFAF107RF77-YVP63M4，JCFAF107RF77-YVP71M4，JCFAF107RF77-YVP80M4，JCFAF107RF77-YVP90S4，JCFAF107RF77-YVPEJ100L4，JCFAF107RF77-YVPEJ112M4，JCFAF107RF77-YVPEJ63M4，JCFAF107RF77-YVPEJ71M4，JCFAF107RF77-YVPEJ80M4，JCFAF107RF77-YVPEJ90S4，NFAF107R77-Y0.12KW，NFAF107R77-Y0.18KW，NFAF107R77-Y0.25KW，NFAF107R77-Y0.37KW，NFAF107R77-Y0.55KW，NFAF107R77-Y0.75KW，NFAF107R77-Y1.1KW，NFAF107R77-Y1.5KW，NFAF107R77-Y100M4，NFAF107R77-Y112M4，NFAF107R77-Y2.2KW，NFAF107R77-Y3KW，NFAF107R77-Y4KW，NFAF107R77-Y63M4，NFAF107R77-Y71M4，NFAF107R77-Y80M4，NFAF107R77-Y90M4，NFAF107RF77-Y100M4，NFAF107RF77-Y112M4，NFAF107RF77-Y63M4，NFAF107RF77-Y71M4，NFAF107RF77-Y80M4，NFAF107RF77-Y90M4，NFAF107RF77-YB100L4，NFAF107RF77-YB112M4，NFAF107RF77-YB63M4，NFAF107RF77-YB71M4，NFAF107RF77-YB80M4，NFAF107RF77-YB90S4，NFAF107RF77-YDP100L4，NFAF107RF77-YDP112M4，NFAF107RF77-YDP63M4，NFAF107RF77-YDP71M4，NFAF107RF77-YDP80M4，NFAF107RF77-YDP90S4，NFAF107RF77-YE100L4，NFAF107RF77-YE112M4，NFAF107RF77-YE63M4，NFAF107RF77-YE71M4，NFAF107RF77-YE80M4，NFAF107RF77-YE90S4，NFAF107RF77-YEJ100L4，NFAF107RF77-YEJ112M4，NFAF107RF77-YEJ63M4，NFAF107RF77-YEJ71M4，NFAF107RF77-YEJ80M4，NFAF107RF77-YEJ90S4，NFAF107RF77-YEJB100L4，NFAF107RF77-YEJB112M4，NFAF107RF77-YEJB63M4，NFAF107RF77-YEJB71M4，NFAF107RF77-YEJB80M4，NFAF107RF77-YEJB90S4，NFAF107RF77-YP100L4，NFAF107RF77-YP112M4，NFAF107RF77-YP63M4，NFAF107RF77-YP71M4，NFAF107RF77-YP80M4，NFAF107RF77-YP90S4，NFAF107RF77-YPB100L4，NFAF107RF77-YPB112M4，NFAF107RF77-YPB63M4，NFAF107RF77-YPB71M4，NFAF107RF77-YPB80M4，NFAF107RF77-YPB90S4，NFAF107RF77-YPE100L4，NFAF107RF77-YPE112M4，NFAF107RF77-YPE63M4，NFAF107RF77-YPE71M4，NFAF107RF77-YPE80M4，NFAF107RF77-YPE90S4，NFAF107RF77-YS100L4，NFAF107RF77-YS112M4，NFAF107RF77-YS63M4，NFAF107RF77-YS71M4，NFAF107RF77-YS80M4，NFAF107RF77-YS90S4，NFAF107RF77-YVB100L4，NFAF107RF77-YVB112M4，NFAF107RF77-YVB63M4，NFAF107RF77-YVB71M4，NFAF107RF77-YVB80M4，NFAF107RF77-YVB90S4，NFAF107RF77-YVP100L4，NFAF107RF77-YVP112M4，NFAF107RF77-YVP63M4，NFAF107RF77-YVP71M4，NFAF107RF77-YVP80M4，NFAF107RF77-YVP90S4，NFAF107RF77-YVPEJ100L4，NFAF107RF77-YVPEJ112M4，NFAF107RF77-YVPEJ63M4，NFAF107RF77-YVPEJ71M4，NFAF107RF77-YVPEJ80M4，NFAF107RF77-YVPEJ90S4，SFAF107R77-Y0.12KW，SFAF107R77-Y0.18KW，SFAF107R77-Y0.25KW，SFAF107R77-Y0.37KW，SFAF107R77-Y0.55KW，SFAF107R77-Y0.75KW，SFAF107R77-Y1.1KW，SFAF107R77-Y1.5KW，SFAF107R77-Y100M4，SFAF107R77-Y112M4，SFAF107R77-Y2.2KW，SFAF107R77-Y3KW，SFAF107R77-Y4KW，SFAF107R77-Y63M4，SFAF107R77-Y71M4，SFAF107R77-Y80M4，SFAF107R77-Y90M4，SFAF107RF77-Y100M4，SFAF107RF77-Y112M4，SFAF107RF77-Y63M4，SFAF107RF77-Y71M4，SFAF107RF77-Y80M4，SFAF107RF77-Y90M4，SFAF107RF77-YB100L4，SFAF107RF77-YB112M4，SFAF107RF77-YB63M4，SFAF107RF77-YB71M4，SFAF107RF77-YB80M4，SFAF107RF77-YB90S4，SFAF107RF77-YDP100L4，SFAF107RF77-YDP112M4，SFAF107RF77-YDP63M4，SFAF107RF77-YDP71M4，SFAF107RF77-YDP80M4，SFAF107RF77-YDP90S4，SFAF107RF77-YE100L4，SFAF107RF77-YE112M4，SFAF107RF77-YE63M4，SFAF107RF77-YE71M4，SFAF107RF77-YE80M4，SFAF107RF77-YE90S4，SFAF107RF77-YEJ100L4，SFAF107RF77-YEJ112M4，SFAF107RF77-YEJ63M4，SFAF107RF77-YEJ71M4，SFAF107RF77-YEJ80M4，SFAF107RF77-YEJ90S4，SFAF107RF77-YEJB100L4，SFAF107RF77-YEJB112M4，SFAF107RF77-YEJB63M4，SFAF107RF77-YEJB71M4，SFAF107RF77-YEJB80M4，SFAF107RF77-YEJB90S4，SFAF107RF77-YP100L4，SFAF107RF77-YP112M4，SFAF107RF77-YP63M4，SFAF107RF77-YP71M4，SFAF107RF77-YP80M4，SFAF107RF77-YP90S4，SFAF107RF77-YPB100L4，SFAF107RF77-YPB112M4，SFAF107RF77-YPB63M4，SFAF107RF77-YPB71M4，SFAF107RF77-YPB80M4，SFAF107RF77-YPB90S4，SFAF107RF77-YPE100L4，SFAF107RF77-YPE112M4，SFAF107RF77-YPE63M4，SFAF107RF77-YPE71M4，SFAF107RF77-YPE80M4，SFAF107RF77-YPE90S4，SFAF107RF77-YS100L4，SFAF107RF77-YS112M4，SFAF107RF77-YS63M4，SFAF107RF77-YS71M4，SFAF107RF77-YS80M4，SFAF107RF77-YS90S4，SFAF107RF77-YVB100L4，SFAF107RF77-YVB112M4，SFAF107RF77-YVB63M4，SFAF107RF77-YVB71M4，SFAF107RF77-YVB80M4，SFAF107RF77-YVB90S4，SFAF107RF77-YVP100L4，SFAF107RF77-YVP112M4，SFAF107RF77-YVP63M4，SFAF107RF77-YVP71M4，SFAF107RF77-YVP80M4，SFAF107RF77-YVP90S4，SFAF107RF77-YVPEJ100L4，SFAF107RF77-YVPEJ112M4，SFAF107RF77-YVPEJ63M4，SFAF107RF77-YVPEJ71M4，SFAF107RF77-YVPEJ80M4，SFAF107RF77-YVPEJ90S4，AFAF107R77-Y0.12KW，AFAF107R77-Y0.18KW，AFAF107R77-Y0.25KW，AFAF107R77-Y0.37KW，AFAF107R77-Y0.55KW，AFAF107R77-Y0.75KW，AFAF107R77-Y1.1KW，AFAF107R77-Y1.5KW，AFAF107R77-Y100M4，AFAF107R77-Y112M4，AFAF107R77-Y2.2KW，AFAF107R77-Y3KW，AFAF107R77-Y4KW，AFAF107R77-Y63M4，AFAF107R77-Y71M4，AFAF107R77-Y80M4，AFAF107R77-Y90M4，AFAF107RF77-Y100M4，AFAF107RF77-Y112M4，AFAF107RF77-Y63M4，AFAF107RF77-Y71M4，AFAF107RF77-Y80M4，AFAF107RF77-Y90M4，AFAF107RF77-YB100L4，AFAF107RF77-YB112M4，AFAF107RF77-YB63M4，AFAF107RF77-YB71M4，AFAF107RF77-YB80M4，AFAF107RF77-YB90S4，AFAF107RF77-YDP100L4，AFAF107RF77-YDP112M4，AFAF107RF77-YDP63M4，AFAF107RF77-YDP71M4，AFAF107RF77-YDP80M4，AFAF107RF77-YDP90S4，AFAF107RF77-YE100L4，AFAF107RF77-YE112M4，AFAF107RF77-YE63M4，AFAF107RF77-YE71M4，AFAF107RF77-YE80M4，AFAF107RF77-YE90S4，AFAF107RF77-YEJ100L4，AFAF107RF77-YEJ112M4，AFAF107RF77-YEJ63M4，AFAF107RF77-YEJ71M4，AFAF107RF77-YEJ80M4，AFAF107RF77-YEJ90S4，AFAF107RF77-YEJB100L4，AFAF107RF77-YEJB112M4，AFAF107RF77-YEJB63M4，AFAF107RF77-YEJB71M4，AFAF107RF77-YEJB80M4，AFAF107RF77-YEJB90S4，AFAF107RF77-YP100L4，AFAF107RF77-YP112M4，AFAF107RF77-YP63M4，AFAF107RF77-YP71M4，AFAF107RF77-YP80M4，AFAF107RF77-YP90S4，AFAF107RF77-YPB100L4，AFAF107RF77-YPB112M4，AFAF107RF77-YPB63M4，AFAF107RF77-YPB71M4，AFAF107RF77-YPB80M4，AFAF107RF77-YPB90S4，AFAF107RF77-YPE100L4，AFAF107RF77-YPE112M4，AFAF107RF77-YPE63M4，AFAF107RF77-YPE71M4，AFAF107RF77-YPE80M4，AFAF107RF77-YPE90S4，AFAF107RF77-YS100L4，AFAF107RF77-YS112M4，AFAF107RF77-YS63M4，AFAF107RF77-YS71M4，AFAF107RF77-YS80M4，AFAF107RF77-YS90S4，AFAF107RF77-YVB100L4，AFAF107RF77-YVB112M4，AFAF107RF77-YVB63M4，AFAF107RF77-YVB71M4，AFAF107RF77-YVB80M4，AFAF107RF77-YVB90S4，AFAF107RF77-YVP100L4，AFAF107RF77-YVP112M4，AFAF107RF77-YVP63M4，AFAF107RF77-YVP71M4，AFAF107RF77-YVP80M4，AFAF107RF77-YVP90S4，AFAF107RF77-YVPEJ100L4，AFAF107RF77-YVPEJ112M4，AFAF107RF77-YVPEJ63M4，AFAF107RF77-YVPEJ71M4，AFAF107RF77-YVPEJ80M4，AFAF107RF77-YVPEJ90S4，FWAF107RW77-Y0.12KW，FWAF107RW77-Y0.18KW，FWAF107RW77-Y0.25KW，FWAF107RW77-Y0.37KW，FWAF107RW77-Y0.55KW，FWAF107RW77-Y0.75KW，FWAF107RW77-Y1.1KW，FWAF107RW77-Y1.5KW，FWAF107RW77-Y100M4，FWAF107RW77-Y112M4，FWAF107RW77-Y2.2KW，FWAF107RW77-Y3KW，FWAF107RW77-Y4KW，FWAF107RW77-Y63M4，FWAF107RW77-Y71M4，FWAF107RW77-Y80M4，FWAF107RW77-Y90M4，FWAF107RWFAF77-Y100M4，FWAF107RWFAF77-Y112M4，FWAF107RWFAF77-Y63M4，FWAF107RWFAF77-Y71M4，FWAF107RWFAF77-Y80M4，FWAF107RWFAF77-Y90M4，FWAF107RWFAF77-YB100L4，FWAF107RWFAF77-YB112M4，FWAF107RWFAF77-YB63M4，FWAF107RWFAF77-YB71M4，FWAF107RWFAF77-YB80M4，FWAF107RWFAF77-YB90S4，FWAF107RWFAF77-YDP100L4，FWAF107RWFAF77-YDP112M4，FWAF107RWFAF77-YDP63M4，FWAF107RWFAF77-YDP71M4，FWAF107RWFAF77-YDP80M4，FWAF107RWFAF77-YDP90S4，FWAF107RWFAF77-YE100L4，FWAF107RWFAF77-YE112M4，FWAF107RWFAF77-YE63M4，FWAF107RWFAF77-YE71M4，FWAF107RWFAF77-YE80M4，FWAF107RWFAF77-YE90S4，FWAF107RWFAF77-YEJ100L4，FWAF107RWFAF77-YEJ112M4，FWAF107RWFAF77-YEJ63M4，FWAF107RWFAF77-YEJ71M4，FWAF107RWFAF77-YEJ80M4，FWAF107RWFAF77-YEJ90S4，FWAF107RWFAF77-YEJB100L4，FWAF107RWFAF77-YEJB112M4，FWAF107RWFAF77-YEJB63M4，FWAF107RWFAF77-YEJB71M4，FWAF107RWFAF77-YEJB80M4，FWAF107RWFAF77-YEJB90S4，FWAF107RWFAF77-YP100L4，FWAF107RWFAF77-YP112M4，FWAF107RWFAF77-YP63M4，FWAF107RWFAF77-YP71M4，FWAF107RWFAF77-YP80M4，FWAF107RWFAF77-YP90S4，FWAF107RWFAF77-YPB100L4，FWAF107RWFAF77-YPB112M4，FWAF107RWFAF77-YPB63M4，FWAF107RWFAF77-YPB71M4，FWAF107RWFAF77-YPB80M4，FWAF107RWFAF77-YPB90S4，FWAF107RWFAF77-YPE100L4，FWAF107RWFAF77-YPE112M4，FWAF107RWFAF77-YPE63M4，FWAF107RWFAF77-YPE71M4，FWAF107RWFAF77-YPE80M4，FWAF107RWFAF77-YPE90S4，FWAF107RWFAF77-YS100L4，FWAF107RWFAF77-YS112M4，FWAF107RWFAF77-YS63M4，FWAF107RWFAF77-YS71M4，FWAF107RWFAF77-YS80M4，FWAF107RWFAF77-YS90S4，FWAF107RWFAF77-YVB100L4，FWAF107RWFAF77-YVB112M4，FWAF107RWFAF77-YVB63M4，FWAF107RWFAF77-YVB71M4，FWAF107RWFAF77-YVB80M4，FWAF107RWFAF77-YVB90S4，FWAF107RWFAF77-YVP100L4，FWAF107RWFAF77-YVP112M4，FWAF107RWFAF77-YVP63M4，FWAF107RWFAF77-YVP71M4，FWAF107RWFAF77-YVP80M4，FWAF107RWFAF77-YVP90S4，FWAF107RWFAF77-YVPEJ100L4，FWAF107RWFAF77-YVPEJ112M4，FWAF107RWFAF77-YVPEJ63M4，FWAF107RWFAF77-YVPEJ71M4，FWAF107RWFAF77-YVPEJ80M4，FWAF107RWFAF77-YVPEJ90S4，FAF109R79-Y0.12KW，FAF109R79-Y0.18KW，FAF109R79-Y0.25KW，FAF109R79-Y0.37KW，FAF109R79-Y0.55KW，FAF109R79-Y0.75KW，FAF109R79-Y1.1KW，FAF109R79-Y1.5KW，FAF109R79-Y100M4，FAF109R79-Y112M4，FAF109R79-Y2.2KW，FAF109R79-Y3KW，FAF109R79-Y4KW，FAF109R79-Y63M4，FAF109R79-Y71M4，FAF109R79-Y80M4，FAF109R79-Y90M4，FAF109RF79-Y100M4，FAF109RF79-Y112M4，FAF109RF79-Y63M4，FAF109RF79-Y71M4，FAF109RF79-Y80M4，FAF109RF79-Y90M4，FAF109RF79-YB100L4，FAF109RF79-YB112M4，FAF109RF79-YB63M4，FAF109RF79-YB71M4，FAF109RF79-YB80M4，FAF109RF79-YB90S4，FAF109RF79-YDP100L4，FAF109RF79-YDP112M4，FAF109RF79-YDP63M4，FAF109RF79-YDP71M4，FAF109RF79-YDP80M4，FAF109RF79-YDP90S4，FAF109RF79-YE100L4，FAF109RF79-YE112M4，FAF109RF79-YE63M4，FAF109RF79-YE71M4，FAF109RF79-YE80M4，FAF109RF79-YE90S4，FAF109RF79-YEJ100L4，FAF109RF79-YEJ112M4，FAF109RF79-YEJ63M4，FAF109RF79-YEJ71M4，FAF109RF79-YEJ80M4，FAF109RF79-YEJ90S4，FAF109RF79-YEJB100L4，FAF109RF79-YEJB112M4，FAF109RF79-YEJB63M4，FAF109RF79-YEJB71M4，FAF109RF79-YEJB80M4，FAF109RF79-YEJB90S4，FAF109RF79-YP100L4，FAF109RF79-YP112M4，FAF109RF79-YP63M4，FAF109RF79-YP71M4，FAF109RF79-YP80M4，FAF109RF79-YP90S4，FAF109RF79-YPB100L4，FAF109RF79-YPB112M4，FAF109RF79-YPB63M4，FAF109RF79-YPB71M4，FAF109RF79-YPB80M4，FAF109RF79-YPB90S4，FAF109RF79-YPE100L4，FAF109RF79-YPE112M4，FAF109RF79-YPE63M4，FAF109RF79-YPE71M4，FAF109RF79-YPE80M4，FAF109RF79-YPE90S4，FAF109RF79-YS100L4，FAF109RF79-YS112M4，FAF109RF79-YS63M4，FAF109RF79-YS71M4，FAF109RF79-YS80M4，FAF109RF79-YS90S4，FAF109RF79-YVB100L4，FAF109RF79-YVB112M4，FAF109RF79-YVB63M4，FAF109RF79-YVB71M4，FAF109RF79-YVB80M4，FAF109RF79-YVB90S4，FAF109RF79-YVP100L4，FAF109RF79-YVP112M4，FAF109RF79-YVP63M4，FAF109RF79-YVP71M4，FAF109RF79-YVP80M4，FAF109RF79-YVP90S4，FAF109RF79-YVPEJ100L4，FAF109RF79-YVPEJ112M4，FAF109RF79-YVPEJ63M4，FAF109RF79-YVPEJ71M4，FAF109RF79-YVPEJ80M4，FAF109RF79-YVPEJ90S4。
