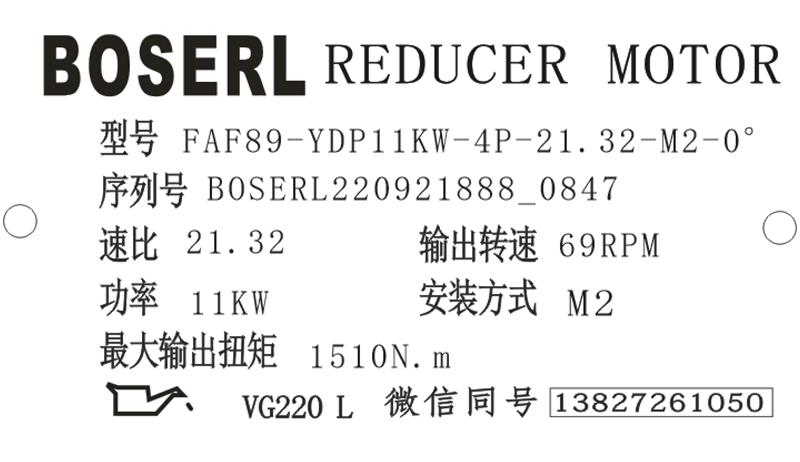

FAF89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FAF89減速機選型樣本。

FAF89-YDP11KW-4P-21.32-M2-0°

FAF：系列代號

89：減速機規格代號

YDP：電機

11KW：電機功率

4P：電機級數

21.32：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

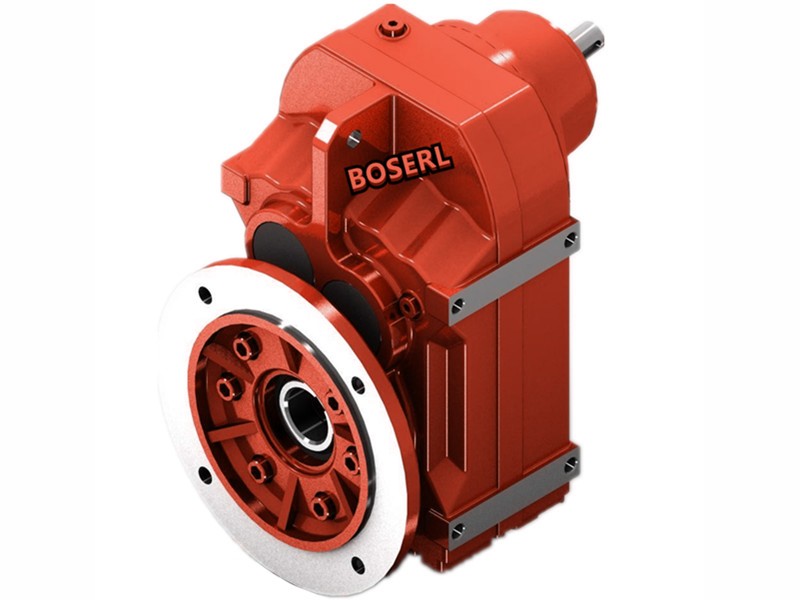

FAF89減速機AD軸入模塊配置：

FAF89減速機AD軸入模塊使用對中軸肩安裝應用設備：對應用設備進行固定時，必須提供相應長度的螺栓。新螺栓的長度L計算如下：［1］t+a；［t］旋入深度（參見表格）；［a］應用設備的厚度；［s］緊固螺紋（參見表格）

FAF89減速機AD軸入模塊根據計算所得的螺栓長度，選取最接近的較小的標準長度；從對中軸肩上卸下固定螺栓；清潔裝配表面和對中軸肩；清潔新螺栓的螺紋并且使用螺栓緊固劑抹在前段螺紋上；將應用設備裝在對中軸肩上，并根據下表所列的擰緊扭矩TA(見下表)擰入緊固螺栓。變頻電機減速機

FAF89減速機AD軸入模塊允許荷載：安裝電機時可能出現超常負荷；嚴禁超出下表所列的負荷值。強度等級為8.8的連接螺栓的最大負荷值。電機的最大允許許重力Fqmax，隨著中心距X的增加而呈線性下降。在中心距減小的情況下，F(xiàn)qmax不增加；聯軸器輸出法蘭盤直徑：160mm。齒輪減速電機

FAF89減速機AD軸入模塊在進行調節之前松開螺母，使得螺栓可以在支架上軸向移動。當?shù)竭_最終調節位置后再上緊螺母。不可通過支架來調整電機安裝平臺。

FAF89減速機維護檢查：

FAF89減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的FAF89減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

FAF89減速機潤滑油更換周期：下圖為在一般條件下標準FAF89減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。平行軸斜齒輪減速機

FAF89減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。

FAF89減速機型號：

WFAF87-Y0.37KW，WFAF87-Y0.55KW，WFAF87-Y0.75KW，WFAF87-Y1.1KW，WFAF87-Y1.5KW，WFAF87-Y100M4，WFAF87-Y112M4，WFAF87-Y11KW，WFAF87-Y132M4，WFAF87-Y15KW，WFAF87-Y160M4，WFAF87-Y18.5KW，WFAF87-Y180M4，WFAF87-Y2.2KW，WFAF87-Y200M4，WFAF87-Y22KW，WFAF87-Y3KW，WFAF87-Y4KW，WFAF87-Y5.5KW，WFAF87-Y7.5KW，WFAF87-Y71M4，WFAF87-Y80M4，WFAF87-Y90M4，WFAF87-YB100M4，WFAF87-YB112M4，WFAF87-YB132M4，WFAF87-YB160M4，WFAF87-YB180M4，WFAF87-YB200M4，WFAF87-YB71M4，WFAF87-YB80M4，WFAF87-YB90M4，WFAF87-YDP100M4，WFAF87-YDP112M4，WFAF87-YDP132M4，WFAF87-YDP160M4，WFAF87-YDP180M4，WFAF87-YDP200M4，WFAF87-YDP71M4，WFAF87-YDP80M4，WFAF87-YDP90M4，WFAF87-YE100M4，WFAF87-YE112M4，WFAF87-YE132M4，WFAF87-YE160M4，WFAF87-YE180M4，WFAF87-YE200M4，WFAF87-YE71M4，WFAF87-YE80M4，WFAF87-YE90M4，WFAF87-YEJ100M4，WFAF87-YEJ112M4，WFAF87-YEJ132M4，WFAF87-YEJ160M4，WFAF87-YEJ180M4，WFAF87-YEJ200M4，WFAF87-YEJ71M4，WFAF87-YEJ80M4，WFAF87-YEJ90M4，WFAF87-YEJB100M4，WFAF87-YEJB112M4，WFAF87-YEJB132M4，WFAF87-YEJB160M4，WFAF87-YEJB180M4，WFAF87-YEJB200M4，WFAF87-YEJB71M4，WFAF87-YEJB80M4，WFAF87-YEJB90M4，WFAF87-YP100M4，WFAF87-YP112M4，WFAF87-YP132M4，WFAF87-YP160M4，WFAF87-YP180M4，WFAF87-YP200M4，WFAF87-YP71M4，WFAF87-YP80M4，WFAF87-YP90M4，WFAF87-YPB100M4，WFAF87-YPB112M4，WFAF87-YPB132M4，WFAF87-YPB160M4，WFAF87-YPB180M4，WFAF87-YPB200M4，WFAF87-YPB71M4，WFAF87-YPB80M4，WFAF87-YPB90M4，WFAF87-YPE100M4，WFAF87-YPE112M4，WFAF87-YPE132M4，WFAF87-YPE160M4，WFAF87-YPE180M4，WFAF87-YPE200M4，WFAF87-YPE71M4，WFAF87-YPE80M4，WFAF87-YPE90M4，WFAF87-YS100M4，WFAF87-YS112M4，WFAF87-YS132M4，WFAF87-YS160M4，WFAF87-YS180M4，WFAF87-YS200M4，WFAF87-YS71M4，WFAF87-YS80M4，WFAF87-YS90M4，WFAF87-YVB100M4，WFAF87-YVB112M4，WFAF87-YVB132M4，WFAF87-YVB160M4，WFAF87-YVB180M4，WFAF87-YVB200M4，WFAF87-YVB71M4，WFAF87-YVB80M4，WFAF87-YVB90M4，WFAF87-YVP100M4，WFAF87-YVP112M4，WFAF87-YVP132M4，WFAF87-YVP160M4，WFAF87-YVP180M4，WFAF87-YVP200M4，WFAF87-YVP71M4，WFAF87-YVP80M4，WFAF87-YVP90M4，WFAF87-YVPEJ100M4，WFAF87-YVPEJ112M4，WFAF87-YVPEJ132M4，WFAF87-YVPEJ160M4，WFAF87-YVPEJ180M4，WFAF87-YVPEJ200M4，WFAF87-YVPEJ71M4，WFAF87-YVPEJ80M4，WFAF87-YVPEJ90M4，AFAF87-Y0.37KW，AFAF87-Y0.55KW，AFAF87-Y0.75KW，AFAF87-Y1.1KW，AFAF87-Y1.5KW，AFAF87-Y100M4，AFAF87-Y112M4，AFAF87-Y11KW，AFAF87-Y132M4，AFAF87-Y15KW，AFAF87-Y160M4，AFAF87-Y18.5KW，AFAF87-Y180M4，AFAF87-Y2.2KW，AFAF87-Y200M4，AFAF87-Y22KW，AFAF87-Y3KW，AFAF87-Y4KW，AFAF87-Y5.5KW，AFAF87-Y7.5KW，AFAF87-Y71M4，AFAF87-Y80M4，AFAF87-Y90M4，AFAF87-YB100M4，AFAF87-YB112M4，AFAF87-YB132M4，AFAF87-YB160M4，AFAF87-YB180M4，AFAF87-YB200M4，AFAF87-YB71M4，AFAF87-YB80M4，AFAF87-YB90M4，AFAF87-YDP100M4，AFAF87-YDP112M4，AFAF87-YDP132M4，AFAF87-YDP160M4，AFAF87-YDP180M4，AFAF87-YDP200M4，AFAF87-YDP71M4，AFAF87-YDP80M4，AFAF87-YDP90M4，AFAF87-YE100M4，AFAF87-YE112M4，AFAF87-YE132M4，AFAF87-YE160M4，AFAF87-YE180M4，AFAF87-YE200M4，AFAF87-YE71M4，AFAF87-YE80M4，AFAF87-YE90M4，AFAF87-YEJ100M4，AFAF87-YEJ112M4，AFAF87-YEJ132M4，AFAF87-YEJ160M4，AFAF87-YEJ180M4，AFAF87-YEJ200M4，AFAF87-YEJ71M4，AFAF87-YEJ80M4，AFAF87-YEJ90M4，AFAF87-YEJB100M4，AFAF87-YEJB112M4，AFAF87-YEJB132M4，AFAF87-YEJB160M4，AFAF87-YEJB180M4，AFAF87-YEJB200M4，AFAF87-YEJB71M4，AFAF87-YEJB80M4，AFAF87-YEJB90M4，AFAF87-YP100M4，AFAF87-YP112M4，AFAF87-YP132M4，AFAF87-YP160M4，AFAF87-YP180M4，AFAF87-YP200M4，AFAF87-YP71M4，AFAF87-YP80M4，AFAF87-YP90M4，AFAF87-YPB100M4，AFAF87-YPB112M4，AFAF87-YPB132M4，AFAF87-YPB160M4，AFAF87-YPB180M4，AFAF87-YPB200M4，AFAF87-YPB71M4，AFAF87-YPB80M4，AFAF87-YPB90M4，AFAF87-YPE100M4，AFAF87-YPE112M4，AFAF87-YPE132M4，AFAF87-YPE160M4，AFAF87-YPE180M4，AFAF87-YPE200M4，AFAF87-YPE71M4，AFAF87-YPE80M4，AFAF87-YPE90M4，AFAF87-YS100M4，AFAF87-YS112M4，AFAF87-YS132M4，AFAF87-YS160M4，AFAF87-YS180M4，AFAF87-YS200M4，AFAF87-YS71M4，AFAF87-YS80M4，AFAF87-YS90M4，AFAF87-YVB100M4，AFAF87-YVB112M4，AFAF87-YVB132M4，AFAF87-YVB160M4，AFAF87-YVB180M4，AFAF87-YVB200M4，AFAF87-YVB71M4，AFAF87-YVB80M4，AFAF87-YVB90M4，AFAF87-YVP100M4，AFAF87-YVP112M4，AFAF87-YVP132M4，AFAF87-YVP160M4，AFAF87-YVP180M4，AFAF87-YVP200M4，AFAF87-YVP71M4，AFAF87-YVP80M4，AFAF87-YVP90M4，AFAF87-YVPEJ100M4，AFAF87-YVPEJ112M4，AFAF87-YVPEJ132M4，AFAF87-YVPEJ160M4，AFAF87-YVPEJ180M4，AFAF87-YVPEJ200M4，AFAF87-YVPEJ71M4，AFAF87-YVPEJ80M4，AFAF87-YVPEJ90M4，NFAF87-Y0.37KW，NFAF87-Y0.55KW，NFAF87-Y0.75KW，NFAF87-Y1.1KW，NFAF87-Y1.5KW，NFAF87-Y100M4，NFAF87-Y112M4，NFAF87-Y11KW，NFAF87-Y132M4，NFAF87-Y15KW，NFAF87-Y160M4，NFAF87-Y18.5KW，NFAF87-Y180M4，NFAF87-Y2.2KW，NFAF87-Y200M4，NFAF87-Y22KW，NFAF87-Y3KW，NFAF87-Y4KW，NFAF87-Y5.5KW，NFAF87-Y7.5KW，NFAF87-Y71M4，NFAF87-Y80M4，NFAF87-Y90M4，NFAF87-YB100M4，NFAF87-YB112M4，NFAF87-YB132M4，NFAF87-YB160M4，NFAF87-YB180M4，NFAF87-YB200M4，NFAF87-YB71M4，NFAF87-YB80M4，NFAF87-YB90M4，NFAF87-YDP100M4，NFAF87-YDP112M4，NFAF87-YDP132M4，NFAF87-YDP160M4，NFAF87-YDP180M4，NFAF87-YDP200M4，NFAF87-YDP71M4，NFAF87-YDP80M4，NFAF87-YDP90M4，NFAF87-YE100M4，NFAF87-YE112M4，NFAF87-YE132M4，NFAF87-YE160M4，NFAF87-YE180M4，NFAF87-YE200M4，NFAF87-YE71M4，NFAF87-YE80M4，NFAF87-YE90M4，NFAF87-YEJ100M4，NFAF87-YEJ112M4，NFAF87-YEJ132M4，NFAF87-YEJ160M4，NFAF87-YEJ180M4，NFAF87-YEJ200M4，NFAF87-YEJ71M4，NFAF87-YEJ80M4，NFAF87-YEJ90M4，NFAF87-YEJB100M4，NFAF87-YEJB112M4，NFAF87-YEJB132M4，NFAF87-YEJB160M4，NFAF87-YEJB180M4，NFAF87-YEJB200M4，NFAF87-YEJB71M4，NFAF87-YEJB80M4，NFAF87-YEJB90M4，NFAF87-YP100M4，NFAF87-YP112M4，NFAF87-YP132M4，NFAF87-YP160M4，NFAF87-YP180M4，NFAF87-YP200M4，NFAF87-YP71M4，NFAF87-YP80M4，NFAF87-YP90M4，NFAF87-YPB100M4，NFAF87-YPB112M4，NFAF87-YPB132M4，NFAF87-YPB160M4，NFAF87-YPB180M4，NFAF87-YPB200M4，NFAF87-YPB71M4，NFAF87-YPB80M4，NFAF87-YPB90M4，NFAF87-YPE100M4，NFAF87-YPE112M4，NFAF87-YPE132M4，NFAF87-YPE160M4，NFAF87-YPE180M4，NFAF87-YPE200M4，NFAF87-YPE71M4，NFAF87-YPE80M4，NFAF87-YPE90M4，NFAF87-YS100M4，NFAF87-YS112M4，NFAF87-YS132M4，NFAF87-YS160M4，NFAF87-YS180M4，NFAF87-YS200M4，NFAF87-YS71M4，NFAF87-YS80M4，NFAF87-YS90M4，NFAF87-YVB100M4，NFAF87-YVB112M4，NFAF87-YVB132M4，NFAF87-YVB160M4，NFAF87-YVB180M4，NFAF87-YVB200M4，NFAF87-YVB71M4，NFAF87-YVB80M4，NFAF87-YVB90M4，NFAF87-YVP100M4，NFAF87-YVP112M4，NFAF87-YVP132M4，NFAF87-YVP160M4，NFAF87-YVP180M4，NFAF87-YVP200M4，NFAF87-YVP71M4，NFAF87-YVP80M4，NFAF87-YVP90M4，NFAF87-YVPEJ100M4，NFAF87-YVPEJ112M4，NFAF87-YVPEJ132M4，NFAF87-YVPEJ160M4，NFAF87-YVPEJ180M4，NFAF87-YVPEJ200M4，NFAF87-YVPEJ71M4，NFAF87-YVPEJ80M4，NFAF87-YVPEJ90M4，SFAF87-Y0.37KW，SFAF87-Y0.55KW，SFAF87-Y0.75KW，SFAF87-Y1.1KW，SFAF87-Y1.5KW，SFAF87-Y100M4，SFAF87-Y112M4，SFAF87-Y11KW，SFAF87-Y132M4，SFAF87-Y15KW，SFAF87-Y160M4，SFAF87-Y18.5KW，SFAF87-Y180M4，SFAF87-Y2.2KW，SFAF87-Y200M4，SFAF87-Y22KW，SFAF87-Y3KW，SFAF87-Y4KW，SFAF87-Y5.5KW，SFAF87-Y7.5KW，SFAF87-Y71M4，SFAF87-Y80M4，SFAF87-Y90M4，SFAF87-YB100M4，SFAF87-YB112M4，SFAF87-YB132M4，SFAF87-YB160M4，SFAF87-YB180M4，SFAF87-YB200M4，SFAF87-YB71M4，SFAF87-YB80M4，SFAF87-YB90M4，SFAF87-YDP100M4，SFAF87-YDP112M4，SFAF87-YDP132M4，SFAF87-YDP160M4，SFAF87-YDP180M4，SFAF87-YDP200M4，SFAF87-YDP71M4，SFAF87-YDP80M4，SFAF87-YDP90M4，SFAF87-YE100M4，SFAF87-YE112M4，SFAF87-YE132M4，SFAF87-YE160M4，SFAF87-YE180M4，SFAF87-YE200M4，SFAF87-YE71M4，SFAF87-YE80M4，SFAF87-YE90M4，SFAF87-YEJ100M4，SFAF87-YEJ112M4，SFAF87-YEJ132M4，SFAF87-YEJ160M4，SFAF87-YEJ180M4，SFAF87-YEJ200M4，SFAF87-YEJ71M4，SFAF87-YEJ80M4，SFAF87-YEJ90M4，SFAF87-YEJB100M4，SFAF87-YEJB112M4，SFAF87-YEJB132M4，SFAF87-YEJB160M4，SFAF87-YEJB180M4，SFAF87-YEJB200M4，SFAF87-YEJB71M4，SFAF87-YEJB80M4，SFAF87-YEJB90M4，SFAF87-YP100M4，SFAF87-YP112M4，SFAF87-YP132M4，SFAF87-YP160M4，SFAF87-YP180M4，SFAF87-YP200M4，SFAF87-YP71M4，SFAF87-YP80M4，SFAF87-YP90M4，SFAF87-YPB100M4，SFAF87-YPB112M4，SFAF87-YPB132M4，SFAF87-YPB160M4，SFAF87-YPB180M4，SFAF87-YPB200M4，SFAF87-YPB71M4，SFAF87-YPB80M4，SFAF87-YPB90M4，SFAF87-YPE100M4，SFAF87-YPE112M4，SFAF87-YPE132M4，SFAF87-YPE160M4，SFAF87-YPE180M4，SFAF87-YPE200M4，SFAF87-YPE71M4，SFAF87-YPE80M4，SFAF87-YPE90M4，SFAF87-YS100M4，SFAF87-YS112M4，SFAF87-YS132M4，SFAF87-YS160M4，SFAF87-YS180M4，SFAF87-YS200M4，SFAF87-YS71M4，SFAF87-YS80M4，SFAF87-YS90M4，SFAF87-YVB100M4，SFAF87-YVB112M4，SFAF87-YVB132M4，SFAF87-YVB160M4，SFAF87-YVB180M4，SFAF87-YVB200M4，SFAF87-YVB71M4，SFAF87-YVB80M4，SFAF87-YVB90M4，SFAF87-YVP100M4，SFAF87-YVP112M4，SFAF87-YVP132M4，SFAF87-YVP160M4，SFAF87-YVP180M4，SFAF87-YVP200M4，SFAF87-YVP71M4，SFAF87-YVP80M4，SFAF87-YVP90M4，SFAF87-YVPEJ100M4，SFAF87-YVPEJ112M4，SFAF87-YVPEJ132M4，SFAF87-YVPEJ160M4，SFAF87-YVPEJ180M4，SFAF87-YVPEJ200M4，SFAF87-YVPEJ71M4，SFAF87-YVPEJ80M4，SFAF87-YVPEJ90M4，GFAF89-Y0.37KW，GFAF89-Y0.55KW，GFAF89-Y0.75KW，GFAF89-Y1.1KW，GFAF89-Y1.5KW，GFAF89-Y100M4，GFAF89-Y112M4，GFAF89-Y11KW，GFAF89-Y132M4，GFAF89-Y15KW，GFAF89-Y160M4，GFAF89-Y18.5KW，GFAF89-Y180M4，GFAF89-Y2.2KW，GFAF89-Y200M4，GFAF89-Y22KW，GFAF89-Y3KW，GFAF89-Y4KW，GFAF89-Y5.5KW，GFAF89-Y7.5KW，GFAF89-Y71M4，GFAF89-Y80M4，GFAF89-Y90M4，GFAF89-YB100M4，GFAF89-YB112M4，GFAF89-YB132M4，GFAF89-YB160M4，GFAF89-YB180M4，GFAF89-YB200M4，GFAF89-YB71M4，GFAF89-YB80M4，GFAF89-YB90M4，GFAF89-YDP100M4，GFAF89-YDP112M4，GFAF89-YDP132M4，GFAF89-YDP160M4，GFAF89-YDP180M4，GFAF89-YDP200M4，GFAF89-YDP71M4，GFAF89-YDP80M4，GFAF89-YDP90M4，GFAF89-YE100M4，GFAF89-YE112M4，GFAF89-YE132M4，GFAF89-YE160M4，GFAF89-YE180M4，GFAF89-YE200M4，GFAF89-YE71M4，GFAF89-YE80M4，GFAF89-YE90M4，GFAF89-YEJ100M4，GFAF89-YEJ112M4，GFAF89-YEJ132M4，GFAF89-YEJ160M4，GFAF89-YEJ180M4，GFAF89-YEJ200M4，GFAF89-YEJ71M4，GFAF89-YEJ80M4，GFAF89-YEJ90M4，GFAF89-YEJB100M4，GFAF89-YEJB112M4，GFAF89-YEJB132M4，GFAF89-YEJB160M4，GFAF89-YEJB180M4，GFAF89-YEJB200M4，GFAF89-YEJB71M4，GFAF89-YEJB80M4，GFAF89-YEJB90M4，GFAF89-YP100M4，GFAF89-YP112M4，GFAF89-YP132M4，GFAF89-YP160M4，GFAF89-YP180M4，GFAF89-YP200M4，GFAF89-YP71M4，GFAF89-YP80M4，GFAF89-YP90M4，GFAF89-YPB100M4，GFAF89-YPB112M4，GFAF89-YPB132M4，GFAF89-YPB160M4，GFAF89-YPB180M4，GFAF89-YPB200M4，GFAF89-YPB71M4，GFAF89-YPB80M4，GFAF89-YPB90M4，GFAF89-YPE100M4，GFAF89-YPE112M4，GFAF89-YPE132M4，GFAF89-YPE160M4，GFAF89-YPE180M4，GFAF89-YPE200M4，GFAF89-YPE71M4，GFAF89-YPE80M4，GFAF89-YPE90M4，GFAF89-YS100M4，GFAF89-YS112M4，GFAF89-YS132M4，GFAF89-YS160M4，GFAF89-YS180M4，GFAF89-YS200M4，GFAF89-YS71M4，GFAF89-YS80M4，GFAF89-YS90M4，GFAF89-YVB100M4，GFAF89-YVB112M4，GFAF89-YVB132M4，GFAF89-YVB160M4，GFAF89-YVB180M4，GFAF89-YVB200M4，GFAF89-YVB71M4，GFAF89-YVB80M4，GFAF89-YVB90M4，GFAF89-YVP100M4，GFAF89-YVP112M4，GFAF89-YVP132M4，GFAF89-YVP160M4，GFAF89-YVP180M4，GFAF89-YVP200M4，GFAF89-YVP71M4，GFAF89-YVP80M4，GFAF89-YVP90M4，GFAF89-YVPEJ100M4，GFAF89-YVPEJ112M4，GFAF89-YVPEJ132M4，GFAF89-YVPEJ160M4，GFAF89-YVPEJ180M4，GFAF89-YVPEJ200M4，GFAF89-YVPEJ71M4，GFAF89-YVPEJ80M4，GFAF89-YVPEJ90M4。
