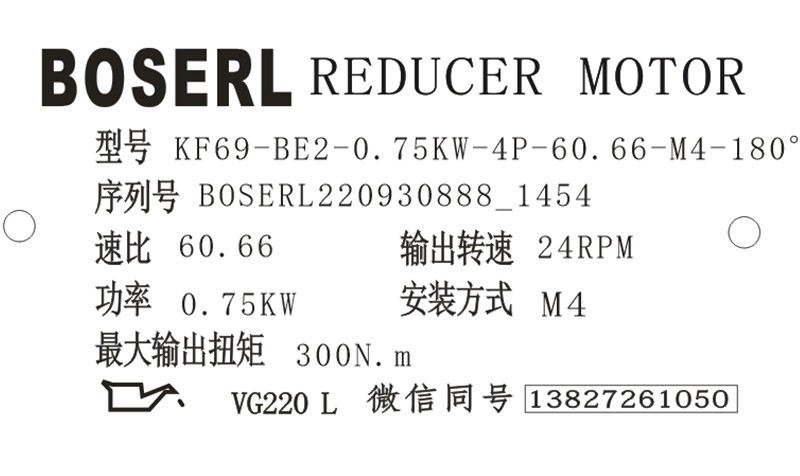

KF69減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF69減速器選型樣本。

KF69-BE2-0.75KW-4P-60.66-M4-180°

KF：系列代號

69：減速機規格代號

BE2：電機

0.75KW：電機功率

4P：電機級數

60.66：減速機傳動比

M4：減速機安裝位置

180°：接線盒位置

KF69減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動KF69減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

KF69減速器安裝操作的正確方法：

KF69減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

KF69減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的KF69減速器選型樣本”）。直角減速機

KF69減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

KF69減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列KF69減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的KF69減速器，啟動KF69減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機減速機

KF69減速器型號：

KWF67-Y0.18KWF，KWF67-Y0.25KWF，KWF67-Y0.37KWF，KWF67-Y0.55KWF，KWF67-Y0.75KWF，KWF67-Y1.1KWF，KWF67-Y1.5KWF，KWF67-Y100M4，KWF67-Y112M4，KWF67-Y2.2KWF，KWF67-Y3KWF，KWF67-Y4KWF，KWF67-Y5.5KWF，KWF67-Y63M4，KWF67-Y71M4，KWF67-Y80M4，KWF67-Y90M4，KWF67-YB100M4，KWF67-YB112M4，KWF67-YB132M4，KWF67-YB63M4，KWF67-YB71M4，KWF67-YB80M4，KWF67-YB90M4，KWF67-YDP100M4，KWF67-YDP112M4，KWF67-YDP132M4，KWF67-YDP63M4，KWF67-YDP71M4，KWF67-YDP80M4，KWF67-YDP90M4，KWF67-YE100M4，KWF67-YE112M4，KWF67-YE132M4，KWF67-YE63M4，KWF67-YE71M4，KWF67-YE80M4，KWF67-YE90M4，KWF67-YEJ100M4，KWF67-YEJ112M4，KWF67-YEJ132M4，KWF67-YEJ63M4，KWF67-YEJ71M4，KWF67-YEJ80M4，KWF67-YEJ90M4，KWF67-YEJB100M4，KWF67-YEJB112M4，KWF67-YEJB132M4，KWF67-YEJB63M4，KWF67-YEJB71M4，KWF67-YEJB80M4，KWF67-YEJB90M4，KWF67-YP100M4，KWF67-YP112M4，KWF67-YP132M4，KWF67-YP63M4，KWF67-YP71M4，KWF67-YP80M4，KWF67-YP90M4，KWF67-YPB100M4，KWF67-YPB112M4，KWF67-YPB132M4，KWF67-YPB63M4，KWF67-YPB71M4，KWF67-YPB80M4，KWF67-YPB90M4，KWF67-YPE100M4，KWF67-YPE112M4，KWF67-YPE132M4，KWF67-YPE63M4，KWF67-YPE71M4，KWF67-YPE80M4，KWF67-YPE90M4，KWF67-YS100M4，KWF67-YS112M4，KWF67-YS132M4，KWF67-YS63M4，KWF67-YS71M4，KWF67-YS80M4，KWF67-YS90M4，KWF67-YVB100M4，KWF67-YVB112M4，KWF67-YVB132M4，KWF67-YVB63M4，KWF67-YVB71M4，KWF67-YVB80M4，KWF67-YVB90M4，KWF67-YVP100M4，KWF67-YVP112M4，KWF67-YVP132M4，KWF67-YVP63M4，KWF67-YVP71M4，KWF67-YVP80M4，KWF67-YVP90M4，KWF67-YVPEJ100M4，KWF67-YVPEJ112M4，KWF67-YVPEJ132M4，KWF67-YVPEJ63M4，KWF67-YVPEJ71M4，KWF67-YVPEJ80M4，KWF67-YVPEJ90M4，XDKF67-Y0.18KWF，XDKF67-Y0.25KWF，XDKF67-Y0.37KWF，XDKF67-Y0.55KWF，XDKF67-Y0.75KWF，XDKF67-Y1.1KWF，XDKF67-Y1.5KWF，XDKF67-Y100M4，XDKF67-Y112M4，XDKF67-Y2.2KWF，XDKF67-Y3KWF，XDKF67-Y4KWF，XDKF67-Y5.5KWF，XDKF67-Y63M4，XDKF67-Y71M4，XDKF67-Y80M4，XDKF67-Y90M4，XDKF67-YB100M4，XDKF67-YB112M4，XDKF67-YB132M4，XDKF67-YB63M4，XDKF67-YB71M4，XDKF67-YB80M4，XDKF67-YB90M4，XDKF67-YDP100M4，XDKF67-YDP112M4，XDKF67-YDP132M4，XDKF67-YDP63M4，XDKF67-YDP71M4，XDKF67-YDP80M4，XDKF67-YDP90M4，XDKF67-YE100M4，XDKF67-YE112M4，XDKF67-YE132M4，XDKF67-YE63M4，XDKF67-YE71M4，XDKF67-YE80M4，XDKF67-YE90M4，XDKF67-YEJ100M4，XDKF67-YEJ112M4，XDKF67-YEJ132M4，XDKF67-YEJ63M4，XDKF67-YEJ71M4，XDKF67-YEJ80M4，XDKF67-YEJ90M4，XDKF67-YEJB100M4，XDKF67-YEJB112M4，XDKF67-YEJB132M4，XDKF67-YEJB63M4，XDKF67-YEJB71M4，XDKF67-YEJB80M4，XDKF67-YEJB90M4，XDKF67-YP100M4，XDKF67-YP112M4，XDKF67-YP132M4，XDKF67-YP63M4，XDKF67-YP71M4，XDKF67-YP80M4，XDKF67-YP90M4，XDKF67-YPB100M4，XDKF67-YPB112M4，XDKF67-YPB132M4，XDKF67-YPB63M4，XDKF67-YPB71M4，XDKF67-YPB80M4，XDKF67-YPB90M4，XDKF67-YPE100M4，XDKF67-YPE112M4，XDKF67-YPE132M4，XDKF67-YPE63M4，XDKF67-YPE71M4，XDKF67-YPE80M4，XDKF67-YPE90M4，XDKF67-YS100M4，XDKF67-YS112M4，XDKF67-YS132M4，XDKF67-YS63M4，XDKF67-YS71M4，XDKF67-YS80M4，XDKF67-YS90M4，XDKF67-YVB100M4，XDKF67-YVB112M4，XDKF67-YVB132M4，XDKF67-YVB63M4，XDKF67-YVB71M4，XDKF67-YVB80M4，XDKF67-YVB90M4，XDKF67-YVP100M4，XDKF67-YVP112M4，XDKF67-YVP132M4，XDKF67-YVP63M4，XDKF67-YVP71M4，XDKF67-YVP80M4，XDKF67-YVP90M4，XDKF67-YVPEJ100M4，XDKF67-YVPEJ112M4，XDKF67-YVPEJ132M4，XDKF67-YVPEJ63M4，XDKF67-YVPEJ71M4，XDKF67-YVPEJ80M4，XDKF67-YVPEJ90M4，JCKF67-Y0.18KWF，JCKF67-Y0.25KWF，JCKF67-Y0.37KWF，JCKF67-Y0.55KWF，JCKF67-Y0.75KWF，JCKF67-Y1.1KWF，JCKF67-Y1.5KWF，JCKF67-Y100M4，JCKF67-Y112M4，JCKF67-Y2.2KWF，JCKF67-Y3KWF，JCKF67-Y4KWF，JCKF67-Y5.5KWF，JCKF67-Y63M4，JCKF67-Y71M4，JCKF67-Y80M4，JCKF67-Y90M4，JCKF67-YB100M4，JCKF67-YB112M4，JCKF67-YB132M4，JCKF67-YB63M4，JCKF67-YB71M4，JCKF67-YB80M4，JCKF67-YB90M4，JCKF67-YDP100M4，JCKF67-YDP112M4，JCKF67-YDP132M4，JCKF67-YDP63M4，JCKF67-YDP71M4，JCKF67-YDP80M4，JCKF67-YDP90M4，JCKF67-YE100M4，JCKF67-YE112M4，JCKF67-YE132M4，JCKF67-YE63M4，JCKF67-YE71M4，JCKF67-YE80M4，JCKF67-YE90M4，JCKF67-YEJ100M4，JCKF67-YEJ112M4，JCKF67-YEJ132M4，JCKF67-YEJ63M4，JCKF67-YEJ71M4，JCKF67-YEJ80M4，JCKF67-YEJ90M4，JCKF67-YEJB100M4，JCKF67-YEJB112M4，JCKF67-YEJB132M4，JCKF67-YEJB63M4，JCKF67-YEJB71M4，JCKF67-YEJB80M4，JCKF67-YEJB90M4，JCKF67-YP100M4，JCKF67-YP112M4，JCKF67-YP132M4，JCKF67-YP63M4，JCKF67-YP71M4，JCKF67-YP80M4，JCKF67-YP90M4，JCKF67-YPB100M4，JCKF67-YPB112M4，JCKF67-YPB132M4，JCKF67-YPB63M4，JCKF67-YPB71M4，JCKF67-YPB80M4，JCKF67-YPB90M4，JCKF67-YPE100M4，JCKF67-YPE112M4，JCKF67-YPE132M4，JCKF67-YPE63M4，JCKF67-YPE71M4，JCKF67-YPE80M4，JCKF67-YPE90M4，JCKF67-YS100M4，JCKF67-YS112M4，JCKF67-YS132M4，JCKF67-YS63M4，JCKF67-YS71M4，JCKF67-YS80M4，JCKF67-YS90M4，JCKF67-YVB100M4，JCKF67-YVB112M4，JCKF67-YVB132M4，JCKF67-YVB63M4，JCKF67-YVB71M4，JCKF67-YVB80M4，JCKF67-YVB90M4，JCKF67-YVP100M4，JCKF67-YVP112M4，JCKF67-YVP132M4，JCKF67-YVP63M4，JCKF67-YVP71M4，JCKF67-YVP80M4，JCKF67-YVP90M4，JCKF67-YVPEJ100M4，JCKF67-YVPEJ112M4，JCKF67-YVPEJ132M4，JCKF67-YVPEJ63M4，JCKF67-YVPEJ71M4，JCKF67-YVPEJ80M4，JCKF67-YVPEJ90M4，YQKF67-Y0.18KWF，YQKF67-Y0.25KWF，YQKF67-Y0.37KWF，YQKF67-Y0.55KWF，YQKF67-Y0.75KWF，YQKF67-Y1.1KWF，YQKF67-Y1.5KWF，YQKF67-Y100M4，YQKF67-Y112M4，YQKF67-Y2.2KWF，YQKF67-Y3KWF，YQKF67-Y4KWF，YQKF67-Y5.5KWF，YQKF67-Y63M4，YQKF67-Y71M4，YQKF67-Y80M4，YQKF67-Y90M4，YQKF67-YB100M4，YQKF67-YB112M4，YQKF67-YB132M4，YQKF67-YB63M4，YQKF67-YB71M4，YQKF67-YB80M4，YQKF67-YB90M4，YQKF67-YDP100M4，YQKF67-YDP112M4，YQKF67-YDP132M4，YQKF67-YDP63M4，YQKF67-YDP71M4，YQKF67-YDP80M4，YQKF67-YDP90M4，YQKF67-YE100M4，YQKF67-YE112M4，YQKF67-YE132M4，YQKF67-YE63M4，YQKF67-YE71M4，YQKF67-YE80M4，YQKF67-YE90M4，YQKF67-YEJ100M4，YQKF67-YEJ112M4，YQKF67-YEJ132M4，YQKF67-YEJ63M4，YQKF67-YEJ71M4，YQKF67-YEJ80M4，YQKF67-YEJ90M4，YQKF67-YEJB100M4，YQKF67-YEJB112M4，YQKF67-YEJB132M4，YQKF67-YEJB63M4，YQKF67-YEJB71M4，YQKF67-YEJB80M4，YQKF67-YEJB90M4，YQKF67-YP100M4，YQKF67-YP112M4，YQKF67-YP132M4，YQKF67-YP63M4，YQKF67-YP71M4，YQKF67-YP80M4，YQKF67-YP90M4，YQKF67-YPB100M4，YQKF67-YPB112M4，YQKF67-YPB132M4，YQKF67-YPB63M4，YQKF67-YPB71M4，YQKF67-YPB80M4，YQKF67-YPB90M4，YQKF67-YPE100M4，YQKF67-YPE112M4，YQKF67-YPE132M4，YQKF67-YPE63M4，YQKF67-YPE71M4，YQKF67-YPE80M4，YQKF67-YPE90M4，YQKF67-YS100M4，YQKF67-YS112M4，YQKF67-YS132M4，YQKF67-YS63M4，YQKF67-YS71M4，YQKF67-YS80M4，YQKF67-YS90M4，YQKF67-YVB100M4，YQKF67-YVB112M4，YQKF67-YVB132M4，YQKF67-YVB63M4，YQKF67-YVB71M4，YQKF67-YVB80M4，YQKF67-YVB90M4，YQKF67-YVP100M4，YQKF67-YVP112M4，YQKF67-YVP132M4，YQKF67-YVP63M4，YQKF67-YVP71M4，YQKF67-YVP80M4，YQKF67-YVP90M4，YQKF67-YVPEJ100M4，YQKF67-YVPEJ112M4，YQKF67-YVPEJ132M4，YQKF67-YVPEJ63M4，YQKF67-YVPEJ71M4，YQKF67-YVPEJ80M4，YQKF67-YVPEJ90M4，KF69-Y0.18KWF，KF69-Y0.25KWF，KF69-Y0.37KWF，KF69-Y0.55KWF，KF69-Y0.75KWF，KF69-Y1.1KWF，KF69-Y1.5KWF，KF69-Y100M4，KF69-Y112M4，KF69-Y2.2KWF，KF69-Y3KWF，KF69-Y4KWF，KF69-Y5.5KWF，KF69-Y63M4，KF69-Y71M4，KF69-Y80M4，KF69-Y90M4，KF69-YB100M4，KF69-YB112M4，KF69-YB132M4，KF69-YB63M4，KF69-YB71M4，KF69-YB80M4，KF69-YB90M4，KF69-YDP100M4，KF69-YDP112M4，KF69-YDP132M4，KF69-YDP63M4，KF69-YDP71M4，KF69-YDP80M4，KF69-YDP90M4，KF69-YE100M4，KF69-YE112M4，KF69-YE132M4，KF69-YE63M4，KF69-YE71M4，KF69-YE80M4，KF69-YE90M4，KF69-YEJ100M4，KF69-YEJ112M4，KF69-YEJ132M4，KF69-YEJ63M4，KF69-YEJ71M4，KF69-YEJ80M4，KF69-YEJ90M4，KF69-YEJB100M4，KF69-YEJB112M4，KF69-YEJB132M4，KF69-YEJB63M4，KF69-YEJB71M4，KF69-YEJB80M4，KF69-YEJB90M4，KF69-YP100M4，KF69-YP112M4，KF69-YP132M4，KF69-YP63M4，KF69-YP71M4，KF69-YP80M4，KF69-YP90M4，KF69-YPB100M4，KF69-YPB112M4，KF69-YPB132M4，KF69-YPB63M4，KF69-YPB71M4，KF69-YPB80M4，KF69-YPB90M4，KF69-YPE100M4，KF69-YPE112M4，KF69-YPE132M4，KF69-YPE63M4，KF69-YPE71M4，KF69-YPE80M4，KF69-YPE90M4，KF69-YS100M4，KF69-YS112M4，KF69-YS132M4，KF69-YS63M4，KF69-YS71M4，KF69-YS80M4，KF69-YS90M4，KF69-YVB100M4，KF69-YVB112M4，KF69-YVB132M4，KF69-YVB63M4，KF69-YVB71M4，KF69-YVB80M4，KF69-YVB90M4，KF69-YVP100M4，KF69-YVP112M4，KF69-YVP132M4，KF69-YVP63M4，KF69-YVP71M4，KF69-YVP80M4，KF69-YVP90M4，KF69-YVPEJ100M4，KF69-YVPEJ112M4，KF69-YVPEJ132M4，KF69-YVPEJ63M4，KF69-YVPEJ71M4，KF69-YVPEJ80M4，KF69-YVPEJ90M4，KF67SF80，KF67SF90，KF67SF100，KF67SF112，KF67SF115，KF67SF140，KF67SF160，KF67SF190。

KF69減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.knight-foundation.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K69減速機
