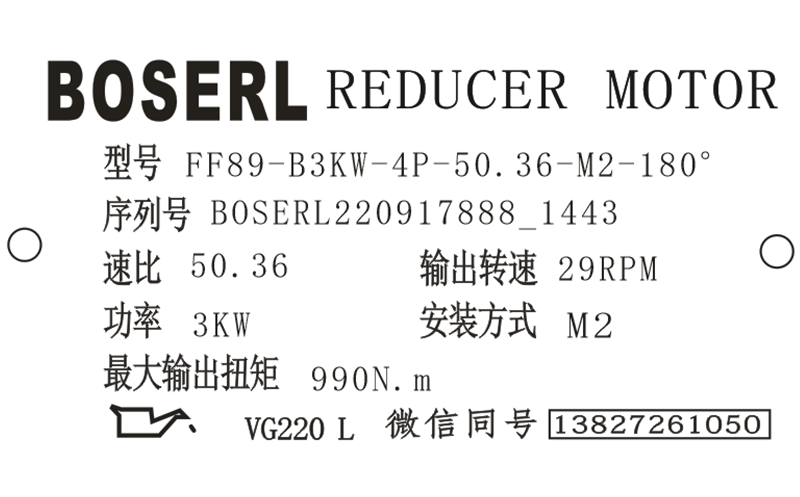

FF89減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF89減速器選型樣本。

FF89-B3KW-4P-48.37-M2-180°

FF：系列代號

89：減速機規格代號

B：電機

3KW：電機功率

4P：電機級數

48.37：減速機傳動比

M2：減速機安裝位置

180°：接線盒位置

FF89減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動FF89減速器前拆下透氣閥的運輸保險！平行軸斜齒輪減速機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

FF89減速器安裝操作的正確方法：

FF89減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列FF89減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的FF89減速器，啟動FF89減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。齒輪減速電機

FF89減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

FF89減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的FF89減速器選型樣本”）。

FF89減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。剎車電機減速機

FF89減速器型號：

XDFF87-Y0.37KW，XDFF87-Y0.55KW，XDFF87-Y0.75KW，XDFF87-Y1.1KW，XDFF87-Y1.5KW，XDFF87-Y100M4，XDFF87-Y112M4，XDFF87-Y11KW，XDFF87-Y132M4，XDFF87-Y15KW，XDFF87-Y160M4，XDFF87-Y18.5KW，XDFF87-Y180M4，XDFF87-Y2.2KW，XDFF87-Y200M4，XDFF87-Y22KW，XDFF87-Y3KW，XDFF87-Y4KW，XDFF87-Y5.5KW，XDFF87-Y7.5KW，XDFF87-Y71M4，XDFF87-Y80M4，XDFF87-Y90M4，XDFF87-YB100M4，XDFF87-YB112M4，XDFF87-YB132M4，XDFF87-YB160M4，XDFF87-YB180M4，XDFF87-YB200M4，XDFF87-YB71M4，XDFF87-YB80M4，XDFF87-YB90M4，XDFF87-YDP100M4，XDFF87-YDP112M4，XDFF87-YDP132M4，XDFF87-YDP160M4，XDFF87-YDP180M4，XDFF87-YDP200M4，XDFF87-YDP71M4，XDFF87-YDP80M4，XDFF87-YDP90M4，XDFF87-YE100M4，XDFF87-YE112M4，XDFF87-YE132M4，XDFF87-YE160M4，XDFF87-YE180M4，XDFF87-YE200M4，XDFF87-YE71M4，XDFF87-YE80M4，XDFF87-YE90M4，XDFF87-YEJ100M4，XDFF87-YEJ112M4，XDFF87-YEJ132M4，XDFF87-YEJ160M4，XDFF87-YEJ180M4，XDFF87-YEJ200M4，XDFF87-YEJ71M4，XDFF87-YEJ80M4，XDFF87-YEJ90M4，XDFF87-YEJB100M4，XDFF87-YEJB112M4，XDFF87-YEJB132M4，XDFF87-YEJB160M4，XDFF87-YEJB180M4，XDFF87-YEJB200M4，XDFF87-YEJB71M4，XDFF87-YEJB80M4，XDFF87-YEJB90M4，XDFF87-YP100M4，XDFF87-YP112M4，XDFF87-YP132M4，XDFF87-YP160M4，XDFF87-YP180M4，XDFF87-YP200M4，XDFF87-YP71M4，XDFF87-YP80M4，XDFF87-YP90M4，XDFF87-YPB100M4，XDFF87-YPB112M4，XDFF87-YPB132M4，XDFF87-YPB160M4，XDFF87-YPB180M4，XDFF87-YPB200M4，XDFF87-YPB71M4，XDFF87-YPB80M4，XDFF87-YPB90M4，XDFF87-YPE100M4，XDFF87-YPE112M4，XDFF87-YPE132M4，XDFF87-YPE160M4，XDFF87-YPE180M4，XDFF87-YPE200M4，XDFF87-YPE71M4，XDFF87-YPE80M4，XDFF87-YPE90M4，XDFF87-YS100M4，XDFF87-YS112M4，XDFF87-YS132M4，XDFF87-YS160M4，XDFF87-YS180M4，XDFF87-YS200M4，XDFF87-YS71M4，XDFF87-YS80M4，XDFF87-YS90M4，XDFF87-YVB100M4，XDFF87-YVB112M4，XDFF87-YVB132M4，XDFF87-YVB160M4，XDFF87-YVB180M4，XDFF87-YVB200M4，XDFF87-YVB71M4，XDFF87-YVB80M4，XDFF87-YVB90M4，XDFF87-YVP100M4，XDFF87-YVP112M4，XDFF87-YVP132M4，XDFF87-YVP160M4，XDFF87-YVP180M4，XDFF87-YVP200M4，XDFF87-YVP71M4，XDFF87-YVP80M4，XDFF87-YVP90M4，XDFF87-YVPEJ100M4，XDFF87-YVPEJ112M4，XDFF87-YVPEJ132M4，XDFF87-YVPEJ160M4，XDFF87-YVPEJ180M4，XDFF87-YVPEJ200M4，XDFF87-YVPEJ71M4，XDFF87-YVPEJ80M4，XDFF87-YVPEJ90M4，JCFF87-Y0.37KW，JCFF87-Y0.55KW，JCFF87-Y0.75KW，JCFF87-Y1.1KW，JCFF87-Y1.5KW，JCFF87-Y100M4，JCFF87-Y112M4，JCFF87-Y11KW，JCFF87-Y132M4，JCFF87-Y15KW，JCFF87-Y160M4，JCFF87-Y18.5KW，JCFF87-Y180M4，JCFF87-Y2.2KW，JCFF87-Y200M4，JCFF87-Y22KW，JCFF87-Y3KW，JCFF87-Y4KW，JCFF87-Y5.5KW，JCFF87-Y7.5KW，JCFF87-Y71M4，JCFF87-Y80M4，JCFF87-Y90M4，JCFF87-YB100M4，JCFF87-YB112M4，JCFF87-YB132M4，JCFF87-YB160M4，JCFF87-YB180M4，JCFF87-YB200M4，JCFF87-YB71M4，JCFF87-YB80M4，JCFF87-YB90M4，JCFF87-YDP100M4，JCFF87-YDP112M4，JCFF87-YDP132M4，JCFF87-YDP160M4，JCFF87-YDP180M4，JCFF87-YDP200M4，JCFF87-YDP71M4，JCFF87-YDP80M4，JCFF87-YDP90M4，JCFF87-YE100M4，JCFF87-YE112M4，JCFF87-YE132M4，JCFF87-YE160M4，JCFF87-YE180M4，JCFF87-YE200M4，JCFF87-YE71M4，JCFF87-YE80M4，JCFF87-YE90M4，JCFF87-YEJ100M4，JCFF87-YEJ112M4，JCFF87-YEJ132M4，JCFF87-YEJ160M4，JCFF87-YEJ180M4，JCFF87-YEJ200M4，JCFF87-YEJ71M4，JCFF87-YEJ80M4，JCFF87-YEJ90M4，JCFF87-YEJB100M4，JCFF87-YEJB112M4，JCFF87-YEJB132M4，JCFF87-YEJB160M4，JCFF87-YEJB180M4，JCFF87-YEJB200M4，JCFF87-YEJB71M4，JCFF87-YEJB80M4，JCFF87-YEJB90M4，JCFF87-YP100M4，JCFF87-YP112M4，JCFF87-YP132M4，JCFF87-YP160M4，JCFF87-YP180M4，JCFF87-YP200M4，JCFF87-YP71M4，JCFF87-YP80M4，JCFF87-YP90M4，JCFF87-YPB100M4，JCFF87-YPB112M4，JCFF87-YPB132M4，JCFF87-YPB160M4，JCFF87-YPB180M4，JCFF87-YPB200M4，JCFF87-YPB71M4，JCFF87-YPB80M4，JCFF87-YPB90M4，JCFF87-YPE100M4，JCFF87-YPE112M4，JCFF87-YPE132M4，JCFF87-YPE160M4，JCFF87-YPE180M4，JCFF87-YPE200M4，JCFF87-YPE71M4，JCFF87-YPE80M4，JCFF87-YPE90M4，JCFF87-YS100M4，JCFF87-YS112M4，JCFF87-YS132M4，JCFF87-YS160M4，JCFF87-YS180M4，JCFF87-YS200M4，JCFF87-YS71M4，JCFF87-YS80M4，JCFF87-YS90M4，JCFF87-YVB100M4，JCFF87-YVB112M4，JCFF87-YVB132M4，JCFF87-YVB160M4，JCFF87-YVB180M4，JCFF87-YVB200M4，JCFF87-YVB71M4，JCFF87-YVB80M4，JCFF87-YVB90M4，JCFF87-YVP100M4，JCFF87-YVP112M4，JCFF87-YVP132M4，JCFF87-YVP160M4，JCFF87-YVP180M4，JCFF87-YVP200M4，JCFF87-YVP71M4，JCFF87-YVP80M4，JCFF87-YVP90M4，JCFF87-YVPEJ100M4，JCFF87-YVPEJ112M4，JCFF87-YVPEJ132M4，JCFF87-YVPEJ160M4，JCFF87-YVPEJ180M4，JCFF87-YVPEJ200M4，JCFF87-YVPEJ71M4，JCFF87-YVPEJ80M4，JCFF87-YVPEJ90M4，FWF87-Y0.37KW，FWF87-Y0.55KW，FWF87-Y0.75KW，FWF87-Y1.1KW，FWF87-Y1.5KW，FWF87-Y100M4，FWF87-Y112M4，FWF87-Y11KW，FWF87-Y132M4，FWF87-Y15KW，FWF87-Y160M4，FWF87-Y18.5KW，FWF87-Y180M4，FWF87-Y2.2KW，FWF87-Y200M4，FWF87-Y22KW，FWF87-Y3KW，FWF87-Y4KW，FWF87-Y5.5KW，FWF87-Y7.5KW，FWF87-Y71M4，FWF87-Y80M4，FWF87-Y90M4，FWF87-YB100M4，FWF87-YB112M4，FWF87-YB132M4，FWF87-YB160M4，FWF87-YB180M4，FWF87-YB200M4，FWF87-YB71M4，FWF87-YB80M4，FWF87-YB90M4，FWF87-YDP100M4，FWF87-YDP112M4，FWF87-YDP132M4，FWF87-YDP160M4，FWF87-YDP180M4，FWF87-YDP200M4，FWF87-YDP71M4，FWF87-YDP80M4，FWF87-YDP90M4，FWF87-YE100M4，FWF87-YE112M4，FWF87-YE132M4，FWF87-YE160M4，FWF87-YE180M4，FWF87-YE200M4，FWF87-YE71M4，FWF87-YE80M4，FWF87-YE90M4，FWF87-YEJ100M4，FWF87-YEJ112M4，FWF87-YEJ132M4，FWF87-YEJ160M4，FWF87-YEJ180M4，FWF87-YEJ200M4，FWF87-YEJ71M4，FWF87-YEJ80M4，FWF87-YEJ90M4，FWF87-YEJB100M4，FWF87-YEJB112M4，FWF87-YEJB132M4，FWF87-YEJB160M4，FWF87-YEJB180M4，FWF87-YEJB200M4，FWF87-YEJB71M4，FWF87-YEJB80M4，FWF87-YEJB90M4，FWF87-YP100M4，FWF87-YP112M4，FWF87-YP132M4，FWF87-YP160M4，FWF87-YP180M4，FWF87-YP200M4，FWF87-YP71M4，FWF87-YP80M4，FWF87-YP90M4，FWF87-YPB100M4，FWF87-YPB112M4，FWF87-YPB132M4，FWF87-YPB160M4，FWF87-YPB180M4，FWF87-YPB200M4，FWF87-YPB71M4，FWF87-YPB80M4，FWF87-YPB90M4，FWF87-YPE100M4，FWF87-YPE112M4，FWF87-YPE132M4，FWF87-YPE160M4，FWF87-YPE180M4，FWF87-YPE200M4，FWF87-YPE71M4，FWF87-YPE80M4，FWF87-YPE90M4，FWF87-YS100M4，FWF87-YS112M4，FWF87-YS132M4，FWF87-YS160M4，FWF87-YS180M4，FWF87-YS200M4，FWF87-YS71M4，FWF87-YS80M4，FWF87-YS90M4，FWF87-YVB100M4，FWF87-YVB112M4，FWF87-YVB132M4，FWF87-YVB160M4，FWF87-YVB180M4，FWF87-YVB200M4，FWF87-YVB71M4，FWF87-YVB80M4，FWF87-YVB90M4，FWF87-YVP100M4，FWF87-YVP112M4，FWF87-YVP132M4，FWF87-YVP160M4，FWF87-YVP180M4，FWF87-YVP200M4，FWF87-YVP71M4，FWF87-YVP80M4，FWF87-YVP90M4，FWF87-YVPEJ100M4，FWF87-YVPEJ112M4，FWF87-YVPEJ132M4，FWF87-YVPEJ160M4，FWF87-YVPEJ180M4，FWF87-YVPEJ200M4，FWF87-YVPEJ71M4，FWF87-YVPEJ80M4，FWF87-YVPEJ90M4，YQFF87-Y0.37KW，YQFF87-Y0.55KW，YQFF87-Y0.75KW，YQFF87-Y1.1KW，YQFF87-Y1.5KW，YQFF87-Y100M4，YQFF87-Y112M4，YQFF87-Y11KW，YQFF87-Y132M4，YQFF87-Y15KW，YQFF87-Y160M4，YQFF87-Y18.5KW，YQFF87-Y180M4，YQFF87-Y2.2KW，YQFF87-Y200M4，YQFF87-Y22KW，YQFF87-Y3KW，YQFF87-Y4KW，YQFF87-Y5.5KW，YQFF87-Y7.5KW，YQFF87-Y71M4，YQFF87-Y80M4，YQFF87-Y90M4，YQFF87-YB100M4，YQFF87-YB112M4，YQFF87-YB132M4，YQFF87-YB160M4，YQFF87-YB180M4，YQFF87-YB200M4，YQFF87-YB71M4，YQFF87-YB80M4，YQFF87-YB90M4，YQFF87-YDP100M4，YQFF87-YDP112M4，YQFF87-YDP132M4，YQFF87-YDP160M4，YQFF87-YDP180M4，YQFF87-YDP200M4，YQFF87-YDP71M4，YQFF87-YDP80M4，YQFF87-YDP90M4，YQFF87-YE100M4，YQFF87-YE112M4，YQFF87-YE132M4，YQFF87-YE160M4，YQFF87-YE180M4，YQFF87-YE200M4，YQFF87-YE71M4，YQFF87-YE80M4，YQFF87-YE90M4，YQFF87-YEJ100M4，YQFF87-YEJ112M4，YQFF87-YEJ132M4，YQFF87-YEJ160M4，YQFF87-YEJ180M4，YQFF87-YEJ200M4，YQFF87-YEJ71M4，YQFF87-YEJ80M4，YQFF87-YEJ90M4，YQFF87-YEJB100M4，YQFF87-YEJB112M4，YQFF87-YEJB132M4，YQFF87-YEJB160M4，YQFF87-YEJB180M4，YQFF87-YEJB200M4，YQFF87-YEJB71M4，YQFF87-YEJB80M4，YQFF87-YEJB90M4，YQFF87-YP100M4，YQFF87-YP112M4，YQFF87-YP132M4，YQFF87-YP160M4，YQFF87-YP180M4，YQFF87-YP200M4，YQFF87-YP71M4，YQFF87-YP80M4，YQFF87-YP90M4，YQFF87-YPB100M4，YQFF87-YPB112M4，YQFF87-YPB132M4，YQFF87-YPB160M4，YQFF87-YPB180M4，YQFF87-YPB200M4，YQFF87-YPB71M4，YQFF87-YPB80M4，YQFF87-YPB90M4，YQFF87-YPE100M4，YQFF87-YPE112M4，YQFF87-YPE132M4，YQFF87-YPE160M4，YQFF87-YPE180M4，YQFF87-YPE200M4，YQFF87-YPE71M4，YQFF87-YPE80M4，YQFF87-YPE90M4，YQFF87-YS100M4，YQFF87-YS112M4，YQFF87-YS132M4，YQFF87-YS160M4，YQFF87-YS180M4，YQFF87-YS200M4，YQFF87-YS71M4，YQFF87-YS80M4，YQFF87-YS90M4，YQFF87-YVB100M4，YQFF87-YVB112M4，YQFF87-YVB132M4，YQFF87-YVB160M4，YQFF87-YVB180M4，YQFF87-YVB200M4，YQFF87-YVB71M4，YQFF87-YVB80M4，YQFF87-YVB90M4，YQFF87-YVP100M4，YQFF87-YVP112M4，YQFF87-YVP132M4，YQFF87-YVP160M4，YQFF87-YVP180M4，YQFF87-YVP200M4，YQFF87-YVP71M4，YQFF87-YVP80M4，YQFF87-YVP90M4，YQFF87-YVPEJ100M4，YQFF87-YVPEJ112M4，YQFF87-YVPEJ132M4，YQFF87-YVPEJ160M4，YQFF87-YVPEJ180M4，YQFF87-YVPEJ200M4，YQFF87-YVPEJ71M4，YQFF87-YVPEJ80M4，YQFF87-YVPEJ90M4，FF89-Y0.37KW，FF89-Y0.55KW，FF89-Y0.75KW，FF89-Y1.1KW，FF89-Y1.5KW，FF89-Y100M4，FF89-Y112M4，FF89-Y11KW，FF89-Y132M4，FF89-Y15KW，FF89-Y160M4，FF89-Y18.5KW，FF89-Y180M4，FF89-Y2.2KW，FF89-Y200M4，FF89-Y22KW，FF89-Y3KW，FF89-Y4KW，FF89-Y5.5KW，FF89-Y7.5KW，FF89-Y71M4，FF89-Y80M4，FF89-Y90M4，FF89-YB100M4，FF89-YB112M4，FF89-YB132M4，FF89-YB160M4，FF89-YB180M4，FF89-YB200M4，FF89-YB71M4，FF89-YB80M4，FF89-YB90M4，FF89-YDP100M4，FF89-YDP112M4，FF89-YDP132M4，FF89-YDP160M4，FF89-YDP180M4，FF89-YDP200M4，FF89-YDP71M4，FF89-YDP80M4，FF89-YDP90M4，FF89-YE100M4，FF89-YE112M4，FF89-YE132M4，FF89-YE160M4，FF89-YE180M4，FF89-YE200M4，FF89-YE71M4，FF89-YE80M4，FF89-YE90M4，FF89-YEJ100M4，FF89-YEJ112M4，FF89-YEJ132M4，FF89-YEJ160M4，FF89-YEJ180M4，FF89-YEJ200M4，FF89-YEJ71M4，FF89-YEJ80M4，FF89-YEJ90M4，FF89-YEJB100M4，FF89-YEJB112M4，FF89-YEJB132M4，FF89-YEJB160M4，FF89-YEJB180M4，FF89-YEJB200M4，FF89-YEJB71M4，FF89-YEJB80M4，FF89-YEJB90M4，FF89-YP100M4，FF89-YP112M4，FF89-YP132M4，FF89-YP160M4，FF89-YP180M4，FF89-YP200M4，FF89-YP71M4，FF89-YP80M4，FF89-YP90M4，FF89-YPB100M4，FF89-YPB112M4，FF89-YPB132M4，FF89-YPB160M4，FF89-YPB180M4，FF89-YPB200M4，FF89-YPB71M4，FF89-YPB80M4，FF89-YPB90M4，FF89-YPE100M4，FF89-YPE112M4，FF89-YPE132M4，FF89-YPE160M4，FF89-YPE180M4，FF89-YPE200M4，FF89-YPE71M4，FF89-YPE80M4，FF89-YPE90M4，FF89-YS100M4，FF89-YS112M4，FF89-YS132M4，FF89-YS160M4，FF89-YS180M4，FF89-YS200M4，FF89-YS71M4，FF89-YS80M4，FF89-YS90M4，FF89-YVB100M4，FF89-YVB112M4，FF89-YVB132M4，FF89-YVB160M4，FF89-YVB180M4，FF89-YVB200M4，FF89-YVB71M4，FF89-YVB80M4，FF89-YVB90M4，FF89-YVP100M4，FF89-YVP112M4，FF89-YVP132M4，FF89-YVP160M4，FF89-YVP180M4，FF89-YVP200M4，FF89-YVP71M4，FF89-YVP80M4，FF89-YVP90M4，FF89-YVPEJ100M4，FF89-YVPEJ112M4，FF89-YVPEJ132M4，FF89-YVPEJ160M4，FF89-YVPEJ180M4，FF89-YVPEJ200M4，FF89-YVPEJ71M4，FF89-YVPEJ80M4，FF89-YVPEJ90M4，FF87SF80，FF87SF90，FF87SF100，FF87SF112，FF87SF115，FF87SF140，FF87SF160，FF87SF190。

FF89減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.knight-foundation.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F89減速機
