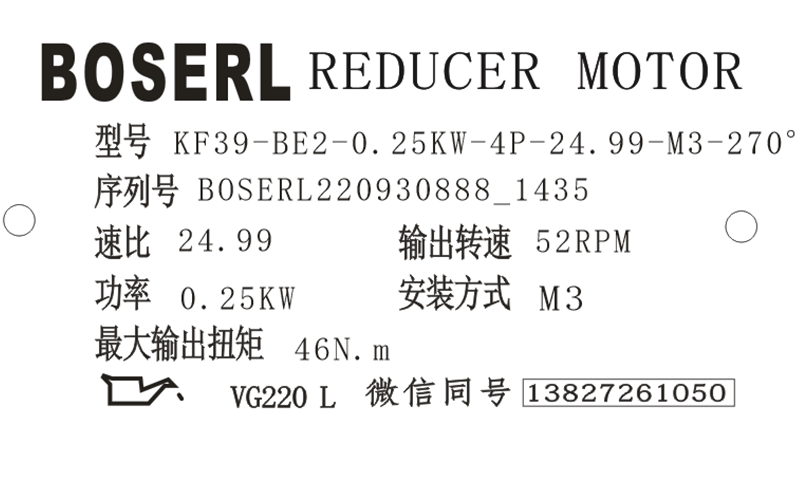

KF39減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF39減速器選型樣本。

KF39-BE2-0.25KW-4P-24.99-M3-270°

KF：系列代號

39：減速機規格代號

BE2：電機

0.25KW：電機功率

4P：電機級數

24.99：減速機傳動比

M3：減速機安裝位置

270°：接線盒位置

KF39減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動KF39減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

KF39減速器安裝操作的正確方法：

KF39減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

KF39減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的KF39減速器選型樣本”）。直角減速機

KF39減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

KF39減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列KF39減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的KF39減速器，啟動KF39減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機減速機

KF39減速器型號：

KF39-Y0.12KWF，KF39-Y0.18KWF，KF39-Y0.25KWF，KF39-Y0.37KWF，KF39-Y0.55KWF，KF39-Y0.75KWF，KF39-Y1.1KWF，KF39-Y1.5KWF，KF39-Y100M4，KF39-Y2.2KWF，KF39-Y3KWF，KF39-Y63M4，KF39-Y71M4，KF39-Y80M4，KF39-Y90M4，KF39-YB100M4，KF39-YB63M4，KF39-YB71M4，KF39-YB80M4，KF39-YB90M4，KF39-YDP100M4，KF39-YDP63M4，KF39-YDP71M4，KF39-YDP80M4，KF39-YDP90M4，KF39-YE100M4，KF39-YE63M4，KF39-YE71M4，KF39-YE80M4，KF39-YE90M4，KF39-YEJ100M4，KF39-YEJ63M4，KF39-YEJ71M4，KF39-YEJ80M4，KF39-YEJ90M4，KF39-YEJB100M4，KF39-YEJB63M4，KF39-YEJB71M4，KF39-YEJB80M4，KF39-YEJB90M4，KF39-YP100M4，KF39-YP63M4，KF39-YP71M4，KF39-YP80M4，KF39-YP90M4，KF39-YPB100M4，KF39-YPB63M4，KF39-YPB71M4，KF39-YPB80M4，KF39-YPB90M4，KF39-YPE100M4，KF39-YPE63M4，KF39-YPE71M4，KF39-YPE80M4，KF39-YPE90M4，KF39-YS100M4，KF39-YS63M4，KF39-YS71M4，KF39-YS80M4，KF39-YS90M4，KF39-YVB100M4，KF39-YVB63M4，KF39-YVB71M4，KF39-YVB80M4，KF39-YVB90M4，KF39-YVP100M4，KF39-YVP63M4，KF39-YVP71M4，KF39-YVP80M4，KF39-YVP90M4，KF39-YVPEJ100M4，KF39-YVPEJ63M4，KF39-YVPEJ71M4，KF39-YVPEJ80M4，KF39-YVPEJ90M4，XDKF37-Y0.12KWF，XDKF37-Y0.18KWF，XDKF37-Y0.25KWF，XDKF37-Y0.37KWF，XDKF37-Y0.55KWF，XDKF37-Y0.75KWF，XDKF37-Y1.1KWF，XDKF37-Y1.5KWF，XDKF37-Y100M4，XDKF37-Y2.2KWF，XDKF37-Y3KWF，XDKF37-Y63M4，XDKF37-Y71M4，XDKF37-Y80M4，XDKF37-Y90M4，XDKF37-YB100M4，XDKF37-YB63M4，XDKF37-YB71M4，XDKF37-YB80M4，XDKF37-YB90M4，XDKF37-YDP100M4，XDKF37-YDP63M4，XDKF37-YDP71M4，XDKF37-YDP80M4，XDKF37-YDP90M4，XDKF37-YE100M4，XDKF37-YE63M4，XDKF37-YE71M4，XDKF37-YE80M4，XDKF37-YE90M4，XDKF37-YEJ100M4，XDKF37-YEJ63M4，XDKF37-YEJ71M4，XDKF37-YEJ80M4，XDKF37-YEJ90M4，XDKF37-YEJB100M4，XDKF37-YEJB63M4，XDKF37-YEJB71M4，XDKF37-YEJB80M4，XDKF37-YEJB90M4，XDKF37-YP100M4，XDKF37-YP63M4，XDKF37-YP71M4，XDKF37-YP80M4，XDKF37-YP90M4，XDKF37-YPB100M4，XDKF37-YPB63M4，XDKF37-YPB71M4，XDKF37-YPB80M4，XDKF37-YPB90M4，XDKF37-YPE100M4，XDKF37-YPE63M4，XDKF37-YPE71M4，XDKF37-YPE80M4，XDKF37-YPE90M4，XDKF37-YS100M4，XDKF37-YS63M4，XDKF37-YS71M4，XDKF37-YS80M4，XDKF37-YS90M4，XDKF37-YVB100M4，XDKF37-YVB63M4，XDKF37-YVB71M4，XDKF37-YVB80M4，XDKF37-YVB90M4，XDKF37-YVP100M4，XDKF37-YVP63M4，XDKF37-YVP71M4，XDKF37-YVP80M4，XDKF37-YVP90M4，XDKF37-YVPEJ100M4，XDKF37-YVPEJ63M4，XDKF37-YVPEJ71M4，XDKF37-YVPEJ80M4，XDKF37-YVPEJ90M4，YQKF37-Y0.12KWF，YQKF37-Y0.18KWF，YQKF37-Y0.25KWF，YQKF37-Y0.37KWF，YQKF37-Y0.55KWF，YQKF37-Y0.75KWF，YQKF37-Y1.1KWF，YQKF37-Y1.5KWF，YQKF37-Y100M4，YQKF37-Y2.2KWF，YQKF37-Y3KWF，YQKF37-Y63M4，YQKF37-Y71M4，YQKF37-Y80M4，YQKF37-Y90M4，YQKF37-YB100M4，YQKF37-YB63M4，YQKF37-YB71M4，YQKF37-YB80M4，YQKF37-YB90M4，YQKF37-YDP100M4，YQKF37-YDP63M4，YQKF37-YDP71M4，YQKF37-YDP80M4，YQKF37-YDP90M4，YQKF37-YE100M4，YQKF37-YE63M4，YQKF37-YE71M4，YQKF37-YE80M4，YQKF37-YE90M4，YQKF37-YEJ100M4，YQKF37-YEJ63M4，YQKF37-YEJ71M4，YQKF37-YEJ80M4，YQKF37-YEJ90M4，YQKF37-YEJB100M4，YQKF37-YEJB63M4，YQKF37-YEJB71M4，YQKF37-YEJB80M4，YQKF37-YEJB90M4，YQKF37-YP100M4，YQKF37-YP63M4，YQKF37-YP71M4，YQKF37-YP80M4，YQKF37-YP90M4，YQKF37-YPB100M4，YQKF37-YPB63M4，YQKF37-YPB71M4，YQKF37-YPB80M4，YQKF37-YPB90M4，YQKF37-YPE100M4，YQKF37-YPE63M4，YQKF37-YPE71M4，YQKF37-YPE80M4，YQKF37-YPE90M4，YQKF37-YS100M4，YQKF37-YS63M4，YQKF37-YS71M4，YQKF37-YS80M4，YQKF37-YS90M4，YQKF37-YVB100M4，YQKF37-YVB63M4，YQKF37-YVB71M4，YQKF37-YVB80M4，YQKF37-YVB90M4，YQKF37-YVP100M4，YQKF37-YVP63M4，YQKF37-YVP71M4，YQKF37-YVP80M4，YQKF37-YVP90M4，YQKF37-YVPEJ100M4，YQKF37-YVPEJ63M4，YQKF37-YVPEJ71M4，YQKF37-YVPEJ80M4，YQKF37-YVPEJ90M4，JCKF37-Y0.12KWF，JCKF37-Y0.18KWF，JCKF37-Y0.25KWF，JCKF37-Y0.37KWF，JCKF37-Y0.55KWF，JCKF37-Y0.75KWF，JCKF37-Y1.1KWF，JCKF37-Y1.5KWF，JCKF37-Y100M4，JCKF37-Y2.2KWF，JCKF37-Y3KWF，JCKF37-Y63M4，JCKF37-Y71M4，JCKF37-Y80M4，JCKF37-Y90M4，JCKF37-YB100M4，JCKF37-YB63M4，JCKF37-YB71M4，JCKF37-YB80M4，JCKF37-YB90M4，JCKF37-YDP100M4，JCKF37-YDP63M4，JCKF37-YDP71M4，JCKF37-YDP80M4，JCKF37-YDP90M4，JCKF37-YE100M4，JCKF37-YE63M4，JCKF37-YE71M4，JCKF37-YE80M4，JCKF37-YE90M4，JCKF37-YEJ100M4，JCKF37-YEJ63M4，JCKF37-YEJ71M4，JCKF37-YEJ80M4，JCKF37-YEJ90M4，JCKF37-YEJB100M4，JCKF37-YEJB63M4，JCKF37-YEJB71M4，JCKF37-YEJB80M4，JCKF37-YEJB90M4，JCKF37-YP100M4，JCKF37-YP63M4，JCKF37-YP71M4，JCKF37-YP80M4，JCKF37-YP90M4，JCKF37-YPB100M4，JCKF37-YPB63M4，JCKF37-YPB71M4，JCKF37-YPB80M4，JCKF37-YPB90M4，JCKF37-YPE100M4，JCKF37-YPE63M4，JCKF37-YPE71M4，JCKF37-YPE80M4，JCKF37-YPE90M4，JCKF37-YS100M4，JCKF37-YS63M4，JCKF37-YS71M4，JCKF37-YS80M4，JCKF37-YS90M4，JCKF37-YVB100M4，JCKF37-YVB63M4，JCKF37-YVB71M4，JCKF37-YVB80M4，JCKF37-YVB90M4，JCKF37-YVP100M4，JCKF37-YVP63M4，JCKF37-YVP71M4，JCKF37-YVP80M4，JCKF37-YVP90M4，JCKF37-YVPEJ100M4，JCKF37-YVPEJ63M4，JCKF37-YVPEJ71M4，JCKF37-YVPEJ80M4，JCKF37-YVPEJ90M4，KWF37-Y0.12KWF，KWF37-Y0.18KWF，KWF37-Y0.25KWF，KWF37-Y0.37KWF，KWF37-Y0.55KWF，KWF37-Y0.75KWF，KWF37-Y1.1KWF，KWF37-Y1.5KWF，KWF37-Y100M4，KWF37-Y2.2KWF，KWF37-Y3KWF，KWF37-Y63M4，KWF37-Y71M4，KWF37-Y80M4，KWF37-Y90M4，KWF37-YB100M4，KWF37-YB63M4，KWF37-YB71M4，KWF37-YB80M4，KWF37-YB90M4，KWF37-YDP100M4，KWF37-YDP63M4，KWF37-YDP71M4，KWF37-YDP80M4，KWF37-YDP90M4，KWF37-YE100M4，KWF37-YE63M4，KWF37-YE71M4，KWF37-YE80M4，KWF37-YE90M4，KWF37-YEJ100M4，KWF37-YEJ63M4，KWF37-YEJ71M4，KWF37-YEJ80M4，KWF37-YEJ90M4，KWF37-YEJB100M4，KWF37-YEJB63M4，KWF37-YEJB71M4，KWF37-YEJB80M4，KWF37-YEJB90M4，KWF37-YP100M4，KWF37-YP63M4，KWF37-YP71M4，KWF37-YP80M4，KWF37-YP90M4，KWF37-YPB100M4，KWF37-YPB63M4，KWF37-YPB71M4，KWF37-YPB80M4，KWF37-YPB90M4，KWF37-YPE100M4，KWF37-YPE63M4，KWF37-YPE71M4，KWF37-YPE80M4，KWF37-YPE90M4，KWF37-YS100M4，KWF37-YS63M4，KWF37-YS71M4，KWF37-YS80M4，KWF37-YS90M4，KWF37-YVB100M4，KWF37-YVB63M4，KWF37-YVB71M4，KWF37-YVB80M4，KWF37-YVB90M4，KWF37-YVP100M4，KWF37-YVP63M4，KWF37-YVP71M4，KWF37-YVP80M4，KWF37-YVP90M4，KWF37-YVPEJ100M4，KWF37-YVPEJ63M4，KWF37-YVPEJ71M4，KWF37-YVPEJ80M4，KWF37-YVPEJ90M4，KF37SF80，KF37SF90，KF37SF100，KF37SF112，KF37SF115，KF37SF140，KF37SF160，KF37SF190。

KF39減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.knight-foundation.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K39減速機
