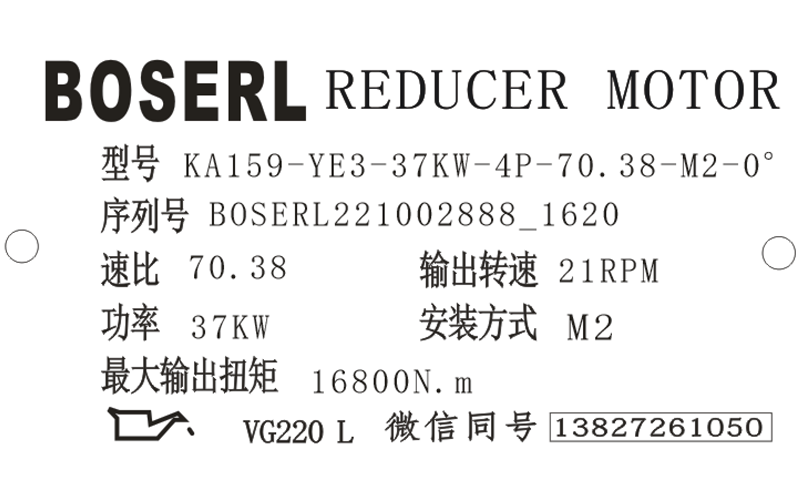

KA159減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA159減速機選型樣本。

KA159-YE3-37KW-4P-70.38-M2-0°

KA：系列代號

159：減速機規格代號

YE3：電機

37KW：電機功率

4P：電機級數

70.38：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

KA159減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA159減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA159減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA159減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA159減速機型號：

WKA157-Y110SKA，WKA157-Y11SKA，WKA157-Y132SKA，WKA157-Y15SKA，WKA157-Y160SKA，WKA157-Y160M4，WKA157-Y18.5SKA，WKA157-Y180M4，WKA157-Y200SKA，WKA157-Y200M4，WKA157-Y225M4，WKA157-Y22SKA，WKA157-Y250M4，WKA157-Y280M4，WKA157-Y30SKA，WKA157-Y315M4，WKA157-Y37SKA，WKA157-Y45SKA，WKA157-Y55SKA，WKA157-Y75SKA，WKA157-Y90SKA，WKA157-YB160M4，WKA157-YB180M4，WKA157-YB200M4，WKA157-YB225M4，WKA157-YB250M4，WKA157-YB280M4，WKA157-YB315M4，WKA157-YDP160M4，WKA157-YDP180M4，WKA157-YDP200M4，WKA157-YDP225M4，WKA157-YDP250M4，WKA157-YDP280M4，WKA157-YDP315M4，WKA157-YE160M4，WKA157-YE180M4，WKA157-YE200M4，WKA157-YE225M4，WKA157-YE250M4，WKA157-YE280M4，WKA157-YE315M4，WKA157-YEJ160M4，WKA157-YEJ180M4，WKA157-YEJ200M4，WKA157-YEJ225M4，WKA157-YEJ250M4，WKA157-YEJ280M4，WKA157-YEJ315M4，WKA157-YEJB160M4，WKA157-YEJB180M4，WKA157-YEJB200M4，WKA157-YEJB225M4，WKA157-YEJB250M4，WKA157-YEJB280M4，WKA157-YEJB315M4，WKA157-YP160M4，WKA157-YP180M4，WKA157-YP200M4，WKA157-YP225M4，WKA157-YP250M4，WKA157-YP280M4，WKA157-YP315M4，WKA157-YPB160M4，WKA157-YPB180M4，WKA157-YPB200M4，WKA157-YPB225M4，WKA157-YPB250M4，WKA157-YPB280M4，WKA157-YPB315M4，WKA157-YPE160M4，WKA157-YPE180M4，WKA157-YPE200M4，WKA157-YPE225M4，WKA157-YPE250M4，WKA157-YPE280M4，WKA157-YPE315M4，WKA157-YS160M4，WKA157-YS180M4，WKA157-YS200M4，WKA157-YS225M4，WKA157-YS250M4，WKA157-YS280M4，WKA157-YS315M4，WKA157-YVB160M4，WKA157-YVB180M4，WKA157-YVB200M4，WKA157-YVB225M4，WKA157-YVB250M4，WKA157-YVB280M4，WKA157-YVB315M4，WKA157-YVP160M4，WKA157-YVP180M4，WKA157-YVP200M4，WKA157-YVP225M4，WKA157-YVP250M4，WKA157-YVP280M4，WKA157-YVP315M4，WKA157-YVPEJ160M4，WKA157-YVPEJ180M4，WKA157-YVPEJ200M4，WKA157-YVPEJ225M4，WKA157-YVPEJ250M4，WKA157-YVPEJ280M4，WKA157-YVPEJ315M4，AKA157-Y110SKA，AKA157-Y11SKA，AKA157-Y132SKA，AKA157-Y15SKA，AKA157-Y160SKA，AKA157-Y160M4，AKA157-Y18.5SKA，AKA157-Y180M4，AKA157-Y200SKA，AKA157-Y200M4，AKA157-Y225M4，AKA157-Y22SKA，AKA157-Y250M4，AKA157-Y280M4，AKA157-Y30SKA，AKA157-Y315M4，AKA157-Y37SKA，AKA157-Y45SKA，AKA157-Y55SKA，AKA157-Y75SKA，AKA157-Y90SKA，AKA157-YB160M4，AKA157-YB180M4，AKA157-YB200M4，AKA157-YB225M4，AKA157-YB250M4，AKA157-YB280M4，AKA157-YB315M4，AKA157-YDP160M4，AKA157-YDP180M4，AKA157-YDP200M4，AKA157-YDP225M4，AKA157-YDP250M4，AKA157-YDP280M4，AKA157-YDP315M4，AKA157-YE160M4，AKA157-YE180M4，AKA157-YE200M4，AKA157-YE225M4，AKA157-YE250M4，AKA157-YE280M4，AKA157-YE315M4，AKA157-YEJ160M4，AKA157-YEJ180M4，AKA157-YEJ200M4，AKA157-YEJ225M4，AKA157-YEJ250M4，AKA157-YEJ280M4，AKA157-YEJ315M4，AKA157-YEJB160M4，AKA157-YEJB180M4，AKA157-YEJB200M4，AKA157-YEJB225M4，AKA157-YEJB250M4，AKA157-YEJB280M4，AKA157-YEJB315M4，AKA157-YP160M4，AKA157-YP180M4，AKA157-YP200M4，AKA157-YP225M4，AKA157-YP250M4，AKA157-YP280M4，AKA157-YP315M4，AKA157-YPB160M4，AKA157-YPB180M4，AKA157-YPB200M4，AKA157-YPB225M4，AKA157-YPB250M4，AKA157-YPB280M4，AKA157-YPB315M4，AKA157-YPE160M4，AKA157-YPE180M4，AKA157-YPE200M4，AKA157-YPE225M4，AKA157-YPE250M4，AKA157-YPE280M4，AKA157-YPE315M4，AKA157-YS160M4，AKA157-YS180M4，AKA157-YS200M4，AKA157-YS225M4，AKA157-YS250M4，AKA157-YS280M4，AKA157-YS315M4，AKA157-YVB160M4，AKA157-YVB180M4，AKA157-YVB200M4，AKA157-YVB225M4，AKA157-YVB250M4，AKA157-YVB280M4，AKA157-YVB315M4，AKA157-YVP160M4，AKA157-YVP180M4，AKA157-YVP200M4，AKA157-YVP225M4，AKA157-YVP250M4，AKA157-YVP280M4，AKA157-YVP315M4，AKA157-YVPEJ160M4，AKA157-YVPEJ180M4，AKA157-YVPEJ200M4，AKA157-YVPEJ225M4，AKA157-YVPEJ250M4，AKA157-YVPEJ280M4，AKA157-YVPEJ315M4，NKA157-Y110SKA，NKA157-Y11SKA，NKA157-Y132SKA，NKA157-Y15SKA，NKA157-Y160SKA，NKA157-Y160M4，NKA157-Y18.5SKA，NKA157-Y180M4，NKA157-Y200SKA，NKA157-Y200M4，NKA157-Y225M4，NKA157-Y22SKA，NKA157-Y250M4，NKA157-Y280M4，NKA157-Y30SKA，NKA157-Y315M4，NKA157-Y37SKA，NKA157-Y45SKA，NKA157-Y55SKA，NKA157-Y75SKA，NKA157-Y90SKA，NKA157-YB160M4，NKA157-YB180M4，NKA157-YB200M4，NKA157-YB225M4，NKA157-YB250M4，NKA157-YB280M4，NKA157-YB315M4，NKA157-YDP160M4，NKA157-YDP180M4，NKA157-YDP200M4，NKA157-YDP225M4，NKA157-YDP250M4，NKA157-YDP280M4，NKA157-YDP315M4，NKA157-YE160M4，NKA157-YE180M4，NKA157-YE200M4，NKA157-YE225M4，NKA157-YE250M4，NKA157-YE280M4，NKA157-YE315M4，NKA157-YEJ160M4，NKA157-YEJ180M4，NKA157-YEJ200M4，NKA157-YEJ225M4，NKA157-YEJ250M4，NKA157-YEJ280M4，NKA157-YEJ315M4，NKA157-YEJB160M4，NKA157-YEJB180M4，NKA157-YEJB200M4，NKA157-YEJB225M4，NKA157-YEJB250M4，NKA157-YEJB280M4，NKA157-YEJB315M4，NKA157-YP160M4，NKA157-YP180M4，NKA157-YP200M4，NKA157-YP225M4，NKA157-YP250M4，NKA157-YP280M4，NKA157-YP315M4，NKA157-YPB160M4，NKA157-YPB180M4，NKA157-YPB200M4，NKA157-YPB225M4，NKA157-YPB250M4，NKA157-YPB280M4，NKA157-YPB315M4，NKA157-YPE160M4，NKA157-YPE180M4，NKA157-YPE200M4，NKA157-YPE225M4，NKA157-YPE250M4，NKA157-YPE280M4，NKA157-YPE315M4，NKA157-YS160M4，NKA157-YS180M4，NKA157-YS200M4，NKA157-YS225M4，NKA157-YS250M4，NKA157-YS280M4，NKA157-YS315M4，NKA157-YVB160M4，NKA157-YVB180M4，NKA157-YVB200M4，NKA157-YVB225M4，NKA157-YVB250M4，NKA157-YVB280M4，NKA157-YVB315M4，NKA157-YVP160M4，NKA157-YVP180M4，NKA157-YVP200M4，NKA157-YVP225M4，NKA157-YVP250M4，NKA157-YVP280M4，NKA157-YVP315M4，NKA157-YVPEJ160M4，NKA157-YVPEJ180M4，NKA157-YVPEJ200M4，NKA157-YVPEJ225M4，NKA157-YVPEJ250M4，NKA157-YVPEJ280M4，NKA157-YVPEJ315M4，GKA159-Y110SKA，GKA159-Y11SKA，GKA159-Y132SKA，GKA159-Y15SKA，GKA159-Y160SKA，GKA159-Y160M4，GKA159-Y18.5SKA，GKA159-Y180M4，GKA159-Y200SKA，GKA159-Y200M4，GKA159-Y225M4，GKA159-Y22SKA，GKA159-Y250M4，GKA159-Y280M4，GKA159-Y30SKA，GKA159-Y315M4，GKA159-Y37SKA，GKA159-Y45SKA，GKA159-Y55SKA，GKA159-Y75SKA，GKA159-Y90SKA，GKA159-YB160M4，GKA159-YB180M4，GKA159-YB200M4，GKA159-YB225M4，GKA159-YB250M4，GKA159-YB280M4，GKA159-YB315M4，GKA159-YDP160M4，GKA159-YDP180M4，GKA159-YDP200M4，GKA159-YDP225M4，GKA159-YDP250M4，GKA159-YDP280M4，GKA159-YDP315M4，GKA159-YE160M4，GKA159-YE180M4，GKA159-YE200M4，GKA159-YE225M4，GKA159-YE250M4，GKA159-YE280M4，GKA159-YE315M4，GKA159-YEJ160M4，GKA159-YEJ180M4，GKA159-YEJ200M4，GKA159-YEJ225M4，GKA159-YEJ250M4，GKA159-YEJ280M4，GKA159-YEJ315M4，GKA159-YEJB160M4，GKA159-YEJB180M4，GKA159-YEJB200M4，GKA159-YEJB225M4，GKA159-YEJB250M4，GKA159-YEJB280M4，GKA159-YEJB315M4，GKA159-YP160M4，GKA159-YP180M4，GKA159-YP200M4，GKA159-YP225M4，GKA159-YP250M4，GKA159-YP280M4，GKA159-YP315M4，GKA159-YPB160M4，GKA159-YPB180M4，GKA159-YPB200M4，GKA159-YPB225M4，GKA159-YPB250M4，GKA159-YPB280M4，GKA159-YPB315M4，GKA159-YPE160M4，GKA159-YPE180M4，GKA159-YPE200M4，GKA159-YPE225M4，GKA159-YPE250M4，GKA159-YPE280M4，GKA159-YPE315M4，GKA159-YS160M4，GKA159-YS180M4，GKA159-YS200M4，GKA159-YS225M4，GKA159-YS250M4，GKA159-YS280M4，GKA159-YS315M4，GKA159-YVB160M4，GKA159-YVB180M4，GKA159-YVB200M4，GKA159-YVB225M4，GKA159-YVB250M4，GKA159-YVB280M4，GKA159-YVB315M4，GKA159-YVP160M4，GKA159-YVP180M4，GKA159-YVP200M4，GKA159-YVP225M4，GKA159-YVP250M4，GKA159-YVP280M4，GKA159-YVP315M4，GKA159-YVPEJ160M4，GKA159-YVPEJ180M4，GKA159-YVPEJ200M4，GKA159-YVPEJ225M4，GKA159-YVPEJ250M4，GKA159-YVPEJ280M4，GKA159-YVPEJ315M4，SKA157-Y110SKA，SKA157-Y11SKA，SKA157-Y132SKA，SKA157-Y15SKA，SKA157-Y160SKA，SKA157-Y160M4，SKA157-Y18.5SKA，SKA157-Y180M4，SKA157-Y200SKA，SKA157-Y200M4，SKA157-Y225M4，SKA157-Y22SKA，SKA157-Y250M4，SKA157-Y280M4，SKA157-Y30SKA，SKA157-Y315M4，SKA157-Y37SKA，SKA157-Y45SKA，SKA157-Y55SKA，SKA157-Y75SKA，SKA157-Y90SKA，SKA157-YB160M4，SKA157-YB180M4，SKA157-YB200M4，SKA157-YB225M4，SKA157-YB250M4，SKA157-YB280M4，SKA157-YB315M4，SKA157-YDP160M4，SKA157-YDP180M4，SKA157-YDP200M4，SKA157-YDP225M4，SKA157-YDP250M4，SKA157-YDP280M4，SKA157-YDP315M4，SKA157-YE160M4，SKA157-YE180M4，SKA157-YE200M4，SKA157-YE225M4，SKA157-YE250M4，SKA157-YE280M4，SKA157-YE315M4，SKA157-YEJ160M4，SKA157-YEJ180M4，SKA157-YEJ200M4，SKA157-YEJ225M4，SKA157-YEJ250M4，SKA157-YEJ280M4，SKA157-YEJ315M4，SKA157-YEJB160M4，SKA157-YEJB180M4，SKA157-YEJB200M4，SKA157-YEJB225M4，SKA157-YEJB250M4，SKA157-YEJB280M4，SKA157-YEJB315M4，SKA157-YP160M4，SKA157-YP180M4，SKA157-YP200M4，SKA157-YP225M4，SKA157-YP250M4，SKA157-YP280M4，SKA157-YP315M4，SKA157-YPB160M4，SKA157-YPB180M4，SKA157-YPB200M4，SKA157-YPB225M4，SKA157-YPB250M4，SKA157-YPB280M4，SKA157-YPB315M4，SKA157-YPE160M4，SKA157-YPE180M4，SKA157-YPE200M4，SKA157-YPE225M4，SKA157-YPE250M4，SKA157-YPE280M4，SKA157-YPE315M4，SKA157-YS160M4，SKA157-YS180M4，SKA157-YS200M4，SKA157-YS225M4，SKA157-YS250M4，SKA157-YS280M4，SKA157-YS315M4，SKA157-YVB160M4，SKA157-YVB180M4，SKA157-YVB200M4，SKA157-YVB225M4，SKA157-YVB250M4，SKA157-YVB280M4，SKA157-YVB315M4，SKA157-YVP160M4，SKA157-YVP180M4，SKA157-YVP200M4，SKA157-YVP225M4，SKA157-YVP250M4，SKA157-YVP280M4，SKA157-YVP315M4，SKA157-YVPEJ160M4，SKA157-YVPEJ180M4，SKA157-YVPEJ200M4，SKA157-YVPEJ225M4，SKA157-YVPEJ250M4，SKA157-YVPEJ280M4，SKA157-YVPEJ315M4。

KA159減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.knight-foundation.com/product/list-kaxiliejiansuji-cn.html

推薦類似型號：K159減速機
